Hot melt the welding machine is applicable to polyethylene (PE/HPDE polypropylene (PP)) of gas pipeline, mine gas, water, sewage, oil pipeline, chemical transportation and cables laid the connection with supporting machines. Easy to use, light and practical

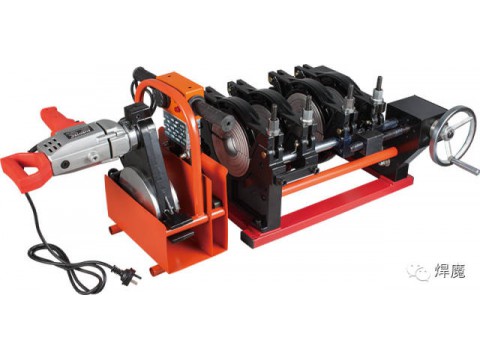

This is the type: JLB-160-4 C
The handwheel handle screw transmission, , flip type
Performance and features:
used in 63, 75, 90, 110, 125, 140, 160 mm of PE, PP plastic pipes, HDPE of hot butt weld connection.
the fixture frame, the heating plate, mills,Storage rack and Wrench, screwdriver, screw
Had the reasonable engineering mechanics design let welding work more convenient and flexible.
Had four card set of structure make the pipe positioning more precise and firm, locking mechanisms can be avoided by external welding influence.
-vice card set of gland unilateral fixed clamshell type structure welding process to more short effective.
driven bilateral chains to drive screw precision machinery institutions provide welding pressure, make smooth transmission powerful, reliable, easy to operate.
-vice motor drives with cutting cutter.
Had excellent performance to price.
Basic technical parameters:
-vice welding specification: Dn63, Dn75, Dn90, Dn110, Dn125, Dn140, Dn160
Temperature control scope: 0 ~ 300
Error: ±5 temperature
Had the heating plate power: 1.2 KW / 220 V
Milling cutter: 0.8 KW / 220 V
