Cassava starch production line

Cassava starch production line introduction:
Cassava starch is a kind of white powder of tapioca that is dehydrated and dried after starch extraction. It is widely used in food industry and non-food industry. Cassava starch production is a very promising market. Doing company mainly engaged in the design, processing and manufacturing of the starch equipment, and make installation and commissioning for the supporting projects.

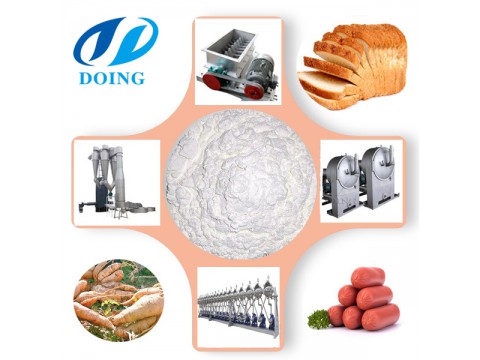

starch application

Cassava starch production line process:
Technical process:
Fresh cassava - Cassava cleaning and washing - Grinding - Starch extraction -  Filtering and desanding - Starch concentration and purification - Dewatering - Drying
Machine order:
Dry sieve - Paddle washer - Cutting machine - Rasper - Centrifuge sieve - Fine fiber sieve - Disc separator - Hydrocyclone - Vacuum filter  - Flash dryer

main machine in cassava starch production line

Main equipments and its function in this cassava starch production line:
1) Cleaning parts of cassava starch production line:
Dry sieve: Widely used in impurities pre-removal for starch production. It's used to remove dirt, sand, small stones, weeds and other impurities that are attached on the surface of potato, sweet potato and cassavas.
Paddle washer: Mainly used  to wash the raw materials. Adopted countercurrent washing principle. By the effect of paddle pushing, the raw material flows in the converse direction against water currently, which makes washing completely and eliminate sand and mud at most.

cassava cleaning machine

2) Crushing parts of cassava starch production line:
Cutting machine: Its main function is cut cassavas into small pieces, 3-5cm, for further processing.
Rasper: Break the materials, crush cassavas into slurry, release starch particles from cell, with high starch dissociation rate.

cassava crushing machine

3) Starch extraction of cassava starch production line:
Centrifuge sieve: Used for the extraction of starch from the materials, remove fiber from starch slurry, high starch extraction rate.
4) Starch filtering and desanding of cassava starch production line:
Fine fiber sieve: It is a machine mainly for separating small particles of fiber from starch slurry. This process is achieved by gravity of the slurry and screen mesh inside the drum.
5) Starch concentration and purification of cassava starch production line:
Disc separator: It is widely used in processing of starch to separate protein and cell liquid out of slurry, with high separating factor.
Hydrocyclone: It is designed to get rid of related substances such as fiber and protein in the starch milk. For the starch's washing, concentration and purification.
Usually suggest this two machine used in combination, make the production high efficiency and high quality.

starch concentration and purification machine

6) Drying system of cassava starch production line:
Vacuum filter: Widely used for the starch dewatering, final starch water content is 38%-42%.
Flash dryer: This is the last step for tapioca starch production. It adopts low temperature drying system, which will prevent starch gelatinization. Final starch water content is 12%-14%.

starch drying system


Above all, its the complete cassava starch production line.

Features of cassava starch production line:

DOING cassava starch production line  include economic type and standardized type.such as medium-sized and large-sized starch production lines.Calculation is based on the dry starch output.

Because of our good factory design, processing art consultation, processing machinery manufacturing and after-sale service of spare parts, we have won a lot of customers. We have many customers from Combodia, Nigeria, Ghana, Vietnam and other countries.

DOING has advanced cassava deep process technology and equipment, and the maturing production techniques of all kinds of starch, We have established many factories at home and abroad. We have 500kg/h, 1T/h, 1.5-2T/h, 5T/h and 10T/h of cssave starch production line.  and other starch production line for example potato starch production line,sweet potato starch porcess machine and so on.
