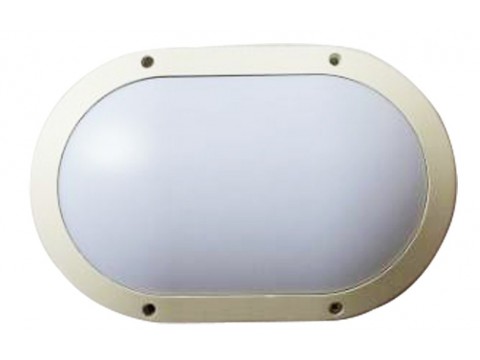

Oval 20W led bulkhead lamp specification
| Model | SP-MLG020W | ||
| Input Voltage | AC85-265VAC 50/60Hz | ||
| Dimension | 280*180*83mm | ||
| Lighting Source | 3528SMD | ||
| Power Consumption | 20W | ||
| Color Temperature | WW(2800~3000K) | NW(4000~4500K) | CW(6000~6500K) |
| Luminosity | ≥1500lm | ≥1650lm | >1600lm |
| CRI(Ra) | >80 | ||
| Beam Angle | 120 | ||
| Work Temperature | -25℃～+45℃ | ||
| Material | Die Cast Aluminium +PC | ||
| GW | 1.2 | ||
| NW | 1.0KG | ||
| Power Factor | >0/9 | ||
| Lifespan (LED) | ≥50,000hrs (950% Lumen Maintenance) | ||
| IP Rating | IP65 | ||
| Lumen Attenuation | <5% @ 5,000hrs | ||
| IK rate | IK09 | ||
Aluminum 20W LED bulkhead lamp advantages
1. Die-casting Aluminium body
2. Powder coating or oil paiting with colour choosed by clients
3. Milky PC cover ,rubber ring for connection
4. Light sources : LED smd Board or Energy saving lamp with E27 socket
5. Voltage:85-285VAC
7. IP65 rating , suitable for indoor and outdoor applications
9. Mount methods : Wall surface mounted/ Hanging
Product advantages :.
1. can be widely used in different applications for indoor and outdoor .
2. can be directly used in moisture enviroment such like bathroom ,spa ,kitchen ..etc.
3. unque apperances , round ,square ,oval shapes are aviable
4. beautiful apperances , white ,grey ,black finhsing colour ,powder painting or oil painting .
4. 3 years warranty are provided , after sales services are provided after selling
5 , easy to be installed ,surface mounted directly
Contact charlotte
info@superolux.com
whatsapp:13670232205
More about us , please check on
| Model | SP-MLG020W | ||
| Input Voltage | AC85-265VAC 50/60Hz | ||
| Dimension | 280*180*83mm | ||
| Lighting Source | 3528SMD | ||
| Power Consumption | 20W | ||
| Color Temperature | WW(2800~3000K) | NW(4000~4500K) | CW(6000~6500K) |
| Luminosity | ≥1500lm | ≥1650lm | >1600lm |
| CRI(Ra) | >80 | ||
| Beam Angle | 120 | ||
| Work Temperature | -25℃～+45℃ | ||
| Material | Die Cast Aluminium +PC | ||
| GW | 1.2 | ||
| NW | 1.0KG | ||
| Power Factor | >0/9 | ||
| Lifespan (LED) | ≥50,000hrs (950% Lumen Maintenance) | ||
| IP Rating | IP65 | ||
| Lumen Attenuation | <5% @ 5,000hrs | ||
| IK rate | IK09 | ||
Aluminum outdoor round bulkhead light
1. Die-casting Aluminium body
2. Powder coating or oil paiting with colour choosed by clients
3. Milky PC cover ,rubber ring for connection
4. Light sources : LED smd Board or Energy saving lamp with E27 socket
5. Voltage:85-285VAC
7. IP65 rating , suitable for indoor and outdoor applications
9. Mount methods : Wall surface mounted/ Hanging
Product advantages :.
1. can be widely used in different applications for indoor and outdoor .
2. can be directly used in moisture enviroment such like bathroom ,spa ,kitchen ..etc.
3. unque apperances , round ,square ,oval shapes are aviable
4. beautiful apperances , white ,grey ,black finhsing colour ,powder painting or oil painting .
4. 3 years warranty are provided , after sales services are provided after selling
5 , easy to be installed ,surface mounted directly
