Introduction:

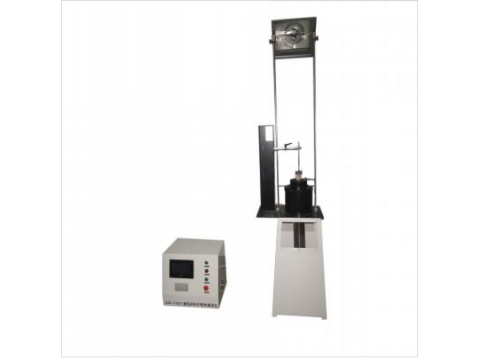

Non-Combustibility Tester measures incombustibility and combustibility of uniform building material and non-uniform building material of actual element.
International standards:
1. ISO1182: Reaction to fire test for building products - Non-combustility test
2. ASTM E136: Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at 750°C
3. KS F ISO 1182: Method of non-combustibility tst of building products
4. GBT5464
Features:
• Single Zone Furnace operable at up to 900 ºC with the NIKROTHAL Ribbon Heater
• 750±5ºC temperature auto control with TPR
• Furnace facilitating maintenance and replacement
• Up/down automatic moving system for correct positioning of test sample and user's convenience
• Mirror to observe the ignition quality of test sample
• RS 232C communication and DAQ Board-adopted interface
• Auto testing by DAQ Board and PC
• Alarm temperature-based overcurrent shut-off system for user's safety
• Software (Non-Comb 2005) to print out reports based on exact data result and each standard
Specification:
Size | 400(w) × 400(D) × 1,270(H) |
Power | 220 V AC, 60 Hz, 10 A |
Weight | 40KG |
control unit | 530(w) × 270(D) × 280(H) |
Manual | supplied |
Utilities |
Personal Computer and PC Printer |
