PERMA Battery is providing total battery power solutions. We at PERMA Battery Enjoyed rapid growth by working closely with our creative customers worldwide. Our technicians and engineers are your competent partners, offering you ready-made concepts or developing a new solution, implement your project from an idea to the successful product smoothly.
PERMA Battery develops and produces high technology and quality Li-ion batteries for electric skateboard, e-mobility and storage, geophysical and industrial applications. The products range includes: electric scooter mobility, electric bike, electric pruning shears, portable medical equipment, GPS tracking system, seismic recorder etc.

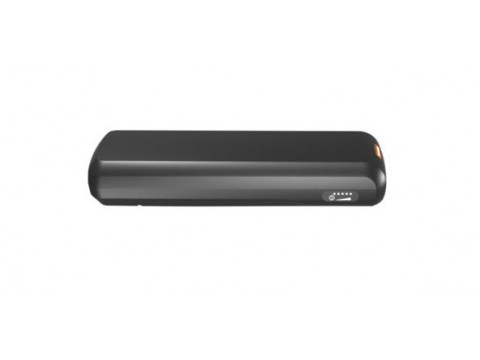

Specifications:
base Parameters
Nominal Voltage (OCV): 48V
Rated Capacity (Ah): 10.4
Power (Wh): 499
Cell: SAMSUNG 18650- 2600mAh
BMS: Smart BMS
Voltage Scope (V): 36-49.2
Internal Resistance: < 240
Charge Mode: CC-CV (Special 5P Charger)
Continuous Charge Current (A): 2-4
Charging Time (H): 6.5 Hours with 2A Charger
Maximum Continuous Discharge Current (A): 18
Matching Parameter
Position: Carrier
Dimensions (mm): 408x123x70
Weight (kg): 3.5
Controller Box: Front / Rear Motor
Carrier: Optional
IP-Code: IP65
