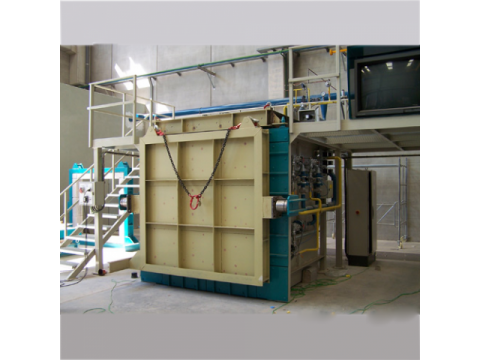

En1363 iso 834 Fire testing furnace for construction building

Introduction

Building Construction Fire Resistance Tester measures the performance of construction material against standard fire conditions, and satisfies the general requirements, vertical history section material, vertical non-history section material and the fire-proof door's fire proof testing. This equipment tests the walls, doors, dampers, connections, through type sealing material, etc.



Applicant Standards

• ISO 834-1 : Fire-resistance tests -Elements of building construction

   Part 1 - General requirements

• ISO 834-4 : Fire-resistance tests -Elements of building construction

  Part 4 - Specific requirements for load bearing vertical separating elements

• ISO 834-5 : Fire-resistance tests -Elements of building construction

   Part 5 - Specific requirements for load bearing horizontal separating elements

• ISO 834-6 : Fire-resistance tests -Elements of building construction

   Part 6 - Specific requirements for beams

• ISO 834-7 : Fire-resistance tests -Elements of building construction

   Part 7 - Specific requirements for columns

• ISO 834-9 : Fire-resistance tests -Elements of building construction

   Part 9 - Specific requirements for non-load bearing ceiling elements

• KS F 2275-1 Methods of fire resistance test for elements of building construction-General requirements

• KS F 2268-1 Fire resistance test for door assemblies

• Other Standards : BS 476(20-23), BS EN 1363(1-2), BS EN 1364(1), BS EN 1365(1), BS EN 1366(1-3), BS EN 1634-1, ASTM E 119, ASTM E 814, UL 10(B-C), UL 263, UL 1709, UL 10(B-C), UL 1479, UL 2079, ISO 3008, ISO 3009


Specification
Size	4,000(w) ×  3,000(D) ×  1,100(H)
Power	AC 380V 3-phase, 50/60Hz, 500A
Weight	Approx. 7,500kg(Vertical Tester),  Approx. 3,500kg(Blocking Smoking),  Approx. 5,700kg(Dust Collector)
Manual	Supply
Exhaust	Minimum 800/min
Auxiliary	Gas, Hydraulic systems, Water, Personal Computer



Features

• Vertical/Horizontal/Small Testing Furnace

- Testing main body and Refractories;

   Inside dimension : 4,000(W) x 3,000(H) x 1,100(D)

- Pattern & PID Control System

- HMI & Control System

- Additional facilities;

   Testing specimen frame (Land, Ship, Boring Testing 1 ea);

   Hydraulic Unit & Cylinder;

   Testing specimen frame stock and work table

    * Excluding testing furnace frontal work Lifter

• Combustion blocking testing device (Option Parts)

  -  Casing & frame

  -  Moving & Sealing Unit;

     Hydraulic Unit & Cylinder ;

     LM Guide Rail ; Sealing Gasket

  - Additional devices and piping;

    Air Supply Fan;

    Flow rate and attachment device

  - Operating Panel

• Exhaustion gas discharge device (Option Parts)

  - I.D FAN

  - Exhaustion Duct

  - Exhaustion Amount Control Damper;

    Strength and Stack material : Carbon Steel ;

    Excluding gas collection hood at the upper part of front of the testing furnace



Test Result

• After applying a certain amount of head within the fireproof door (ISO Curve) and measure the degree of twist (disposition) and any damages due to heat, and additionally measure any flow of heat towards the exterior.

• During test time, it distribute pressure measurement(Pa) and print for graph

• During test time, it distribute temperature measurement(oC) and print for graph

• During test time, record characteristic of specimen and damage
