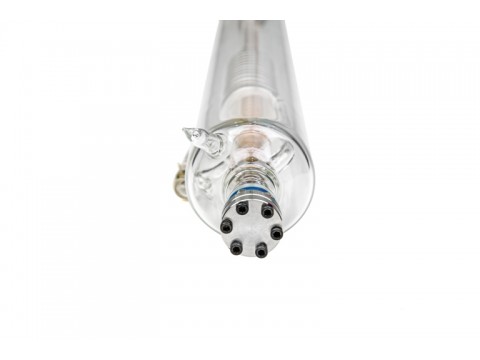

Model E180
Output Power( Rated Power/Max Power)(W) 180W/200W
"N" Type Waist located the output coupler
Beam Waist(2W.)(mm) 5.9
Beam Divergence(mrad full angle) 2.65
B" Type Waist located outside the output coupler
Beam Waist(2W.)(mm) 4.9
Beam Divergence(mrad full angle) 3.1
Pointing Stability(mrad) less than 0.2
Typical Power Stablilty(±% after warm up) 4
Polarisation Random polarization or linear polarization
Maximum Strike Voltage(KV) 40
Rated Operating Current-Absolute max.(mA) 35go to38
Dynamic Range Negative high voltage
Electrical Requirements 6compare to1
Single Phase 110V-60Hz(A) 7
230V-50Hz(A) 4
Water cooling (W) 700
Dia(mm) 80
L(mm) 1905
W(mm)
H(mm)
Weight(kg) 5
Wrranty 20Months
Prics($) 1430
Economy Type ELC Series Advantages
GIS UK original technology for Catalytic, GIS original formula for co2 gas, PERFECT LASER SPOT, Negative High Voltage Structure, More Stable and longlife , Excellent beam profile at all power levels, High Stability outpit,12Months lifetime, High vacuum technology for longlife time, Laser tube and combined laser beam system as option ,Easy intergration ,HV power supply HV, Algnment beam option, Diffusion colled design
2018 NEW Economy Type Laser ELC Series Negative High Voltages Type Laser Tube only
|
Model |
rated power(w) |
Max Power（w) |
Length（mm) |
Dia（mm) |
Catalyst |
Warranty |
Price($) |
|
E110 |
110W |
110~138W |
1474±5 |
Φ80±2 |
YES |
20 Month |
$400 |
|
E130 |
130W |
130~160W |
1574±5 |
Φ80±2 |
YES |
20 Month |
$580 |
|
E150 |
150W |
150~180w |
1660±5 |
Φ80±2 |
YES |
20 Month |
$1050 |
|
E180 |
180W |
180~200w |
1905±5 |
Φ80±2 |
YES |
20 Month |
$1430 |
The quotation E130 Series offirst product trial price is at a discount of 20%,（Min order 2pcs,and just for E130)
