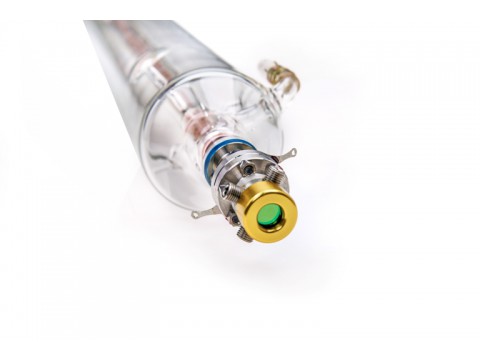

200W/260W co2 laser tube SLC200Combined Beam Laser

 Laser specifications                 Combined Beam Laser
Model                                 SLC200
Output Power( Rated Power/Max Power)(W)    200W/260W
"N" Type                      Waist located the output coupler
Beam Waist(2W.)(mm)                       5.8
Beam Divergence(mrad full angle)           2.6
B" Type                     Waist located outside the output coupler
Beam Waist(2W.)(mm)                     4.8
Beam Divergence(mrad full angle)           3.1
Pointing Stability(mrad)                  less than 0.1
Typical Power Stablilty(±% after warm up)     5
Polarisation              Random polarization or linear polarization
Maximum Strike Voltage(KV)                40
Rated Operating Current-Absolute max.(mA)    32 go to35
Dynamic Range                   Negative high voltage
Electrical Requirements                  6compare to1
Single Phase 110V-60Hz(A)               13
230V-50Hz(A)                          7
Cooling (l/min)(de-ionized water)     7.2
Water cooling (W)                     1300
Dia(mm)                              80
L(mm)                             1737
W(mm)                               206
H(mm)                             166
Weight(kg)                           26
Wrranty                             12Months
Prics($)                            12220
