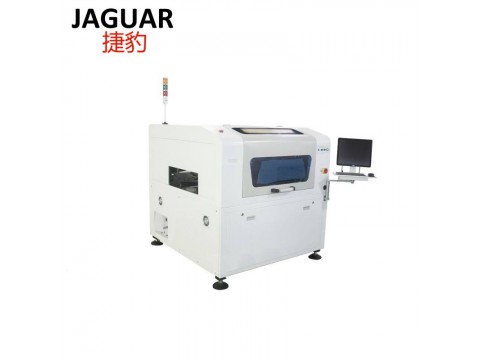

Click image to view original image
a) Wide compatibility for PCB dimensions from 100mm x 80mm to 850mm x 500mm and PCB thickness from 0.8mm to 6mm.
b) High printing resolution
1. High positional accuracy, repeated positioning accuracy ±0.01mm; printing accuracy 0.025mm.
2. Support glue printing.
c) Automatic control improves production efficiency, quality control and saves production cost:
1. Automatic stencil positioning
2. Automatic PCB alignment
3. Automatic adjustment of squeegee pressure
4. Automatic printing
5. Automatic stencil cleaning (dry-type, wet-type and vacuum-type)
d) Adopt company independently developed suspended print head and programmable automatic pressure adjustment system with pressure closed-loop feedback. Support on-line real time pressure feedback and automatic squeegee pressure balancing. Accurate pressure control ensures perfect forming effect of solder paste.
e) Programmable motor controls squeegees separation speed and distance among squeegees, steel mesh and substrate board to realize multi-method separation.
f) Multi-functional PCB positioning and clamping system for fast, convenient and accurate PCB positioning.
g) Upward and downward visual positioning.
h) Built-in image processing system
i) Support 2D,SPC functions
