Technology Parameters:
|
Model |

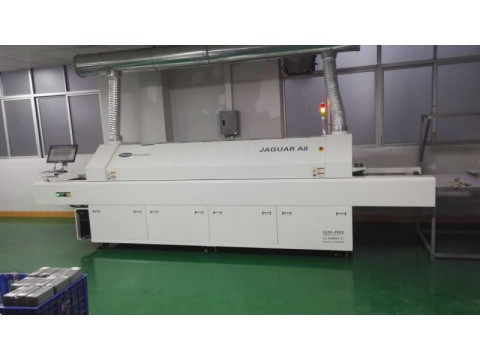

JAGUAR A8 |
|
|
Heating System |
Number of heating zones |
UP 8/BOTTOM 8 |
|
Number of cooling zones |
1 |
|
|
Length of heating zones |
2800MM |
|
|
Heating mode |
Up:hot air; bottom: IR |
|
|
Cooling Mode |
Force air |
|
|
Conveyor System |
Max. Width of PCB |
350mm |
|
Mesh belt width |
400mm |
|
|
Transmission Direction |
L→R(or R→L) |
|
|
Transmission Net Height |
880±20mm |
|
|
Transmission type |
Mesh |
|
|
Conveyor speed |
0-1000mm/min |
|
|
Fixed rail side |
Front rail fixed(option: rear rail fixed) |
|
