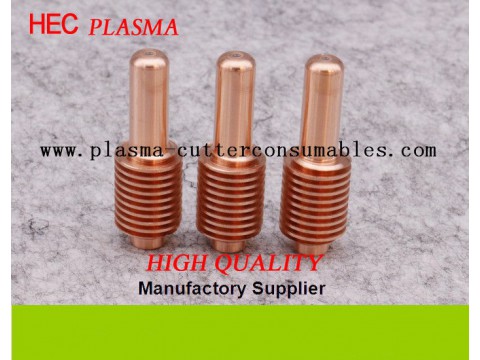

Hypertherm Silver Electrode 220971 Plasma Cutting Consumables for PowerMax125
We are specialized in the production of plasma cutting machine torch consumables manufacturer, we are engaged in the industry for ten years. Our products are processed using CNC machines, we have fifteen sets of high-precision testing equipment and Eighty experienced skilled workers.
We can offer you all plasma consumables for hyptertherm, Kjellberg, Esab, Koike, Komatsu, Thermadyne, such as: electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.
| Machine | HEC NO. | Ref NO. | Description |
|
PowerMAX125 |
H71997 | 220997 | Swirl Ring 45/65/125Amp |
| H71159 | 420159 | Swirl Ring 45Amp FineCut | |
| H01971 | 220971 | Electrode 45/65/85/105/125Amp | |
| H11158 | 420158 | Nozzle 45Amp | |
| H11169 | 420169 | Nozzle 65Amp | |
| H11975 | 220975 | Nozzle 125Amp | |
| H11151 | 420151 | Nozzle 45Amp FineCut | |
| H11001 | 420001 | Nozzle 30-125A gouging | |
| H41977 | 220977 | Retaining Cap 45/65/125Amp | |
| H41156 | 420156 | Retaining Cap 45/65/125A mechanized, ohmic | |
| H21168 | 420168 | Shield 45/65Amp mechanized | |
| H21172 | 420172 | Shield 45/65A drag-cutting | |
| H21976 | 220976 | Shield 125Amp mechanized | |
| H21000 | 420000 | Shield 125A drag-cutting | |
| H21152 | 420152 | Shield 45A FineCut | |
| H21112 | 420112 | Shieldg 30-125A gouging |
Technical Support:
The problem of plasma cutting
5.4 spark generator can't be broken arc
Plasma cutting machine work, first of all to ignite the plasma arc, by the high frequency oscillator excited gas between the electrode and the inner wall of the nozzle, resulting in high-frequency discharge, the gas ionization and the formation of local small arc, the small arc by compressed air and ejected from the nozzle to ignite the plasma arc, which is main task spark generator. Under normal circumstances, the spark generator working time is only 0. 5 ~ 1s, the reason does not automatically break arc is generally offset control circuit board components, discharge electrode gap of the spark generator is not right. Should always check the spark generator discharge electrode, make the surface smooth, timely adjustment of the discharge electrode gap spark generator (0. From 8 to 1. 2mm), it is necessary to change control board.
5.5 poor contact with the ground
The ground is the essential preparation before cutting work a. Without the use of special grounding tool, workpiece surface insulation and long-term aging serious ground, will cause poor contact with the ground. Should use special grounding tool, and check whether the insulation effect of the ground contact with the workpiece surface, avoid the aging ground
