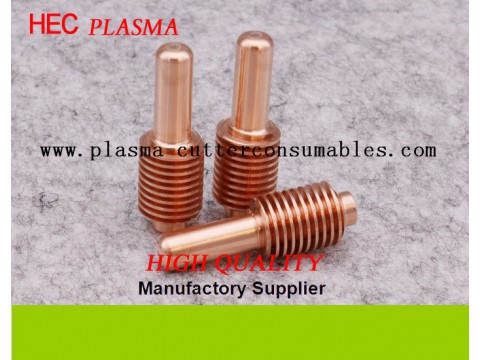

Hypertherm Plasma Cutting Electrode 220971 For PowerMax125 Plasma Cutter Parts

Hypertherm Plasma Electrode 220971 Plasma Torch Consumables for PowerMax125



            We are specialized in the production of plasma cutting machine torch consumables manufacturer, we are engaged in the industry for ten years. Our products are processed using CNC machines, we have fifteen sets of high-precision testing equipment and Eighty experienced skilled workers.

            We can offer you all plasma consumables for hyptertherm, Kjellberg, Esab, Koike, Komatsu, Thermadyne, such as: electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.

           In recent years, we have been sold in lots of countries and regions in Europe and Asia and gained good reputation widely with excellent quality . In order to meet customers’ requirements and improve product quality, our company has already realized mechanical processing numerical control automatization production, and been committed to manufacturing products with best quality.





Machine	HEC NO.	Ref NO.	Description
PowerMAX125	H71997	220997	Swirl Ring 45/65/125Amp
	H71159	420159	Swirl Ring 45Amp FineCut
	H01971	220971	Electrode 45/65/85/105/125Amp
	H11158	420158	Nozzle 45Amp
	H11169	420169	Nozzle 65Amp
	H11975	220975	Nozzle 125Amp
	H11151	420151	Nozzle 45Amp FineCut
	H11001	420001	Nozzle 30-125A gouging
	H41977	220977	Retaining Cap 45/65/125Amp
	H41156	420156	Retaining Cap 45/65/125A mechanized, ohmic
	H21168	420168	Shield 45/65Amp mechanized
	H21172	420172	Shield 45/65A drag-cutting
	H21976	220976	Shield 125Amp mechanized
	H21000	420000	Shield 125A drag-cutting
	H21152	420152	Shield 45A FineCut
	H21112	420112	Shieldg 30-125A gouging







Technical Support:



Plasma cutting machine matters needing attention



The selection of cutting parameters of CNC plasma cutting machine is very important for cutting quality, cutting speed and efficiency. The correct use of CNC plasma machine for high quality fast cutting, cutting process parameters must be deeply understood and mastered.



First, cutting current: it is the most important cutting process parameters, directly determines the cutting thickness and speed, that is, cutting ability. Effects: 1, cutting current increases, an increase in the energy of the arc, cutting ability, the cutting speed is increased; 2, cutting current increases, increasing the diameter of the arc arc variable rough makes incision width; 3, cutting current ambassador to the nozzle increases the heat load, the nozzle premature damage, cutting quality of the natural decline, can't even normal cut. So the cutting current and the corresponding nozzle should be chosen according to the thickness of the material before cutting.
