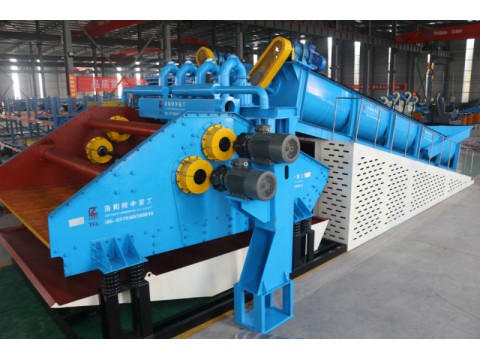

Compact sand washer with trommel screen

Click image to view original image
Brand: LZZG
DS-2L1130: 13160*5780*3510
Price: 2.00USD/Sets
Min.Order: 1 Sets
Supply 500 Sets
Delivery: Shipment within 3 days since the date of payment
Address: China
Valid until: 2021-01-08 [Expired]
Updated on: 2018-05-19 16:05
Hits: 18779
Company Detail


Details

Application

1.mining, aggregate processing, piling mud, river dredging, city construction waste incineration, ceramic raw material, silica sand production and various kinds of metal ores, tailings disposal and other industries.


Working principle

Compact-sand-washer-with-trommel-screen

*Screening:The Trommel Screen is also called rotary screen or drum screen, which screening the material into different size.


*Washing:The bucket is driven by the motor through the reducer and rotates in circle. There are many sand storage web grooves and bucket screen for sand storage and primary dewatering. When the bucket moves, sand can be put out by sand storage web groove after being cleaned in the cleaning tank and primary dewatered on the bucket screen.


*Recycling:Flowing slurry water is extracted by slurry pump, fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurathane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen.


*Dewatering:coarse sand (3-10mm) and fine sand (0.16-3mm) are fed onto polyurathane vibrating screen for dewatering.

Features

1.Flexibility, high production rates, serviceability and low maintenance.

2.Compact structure, saving land area.

3.High efficiency and cost saving.

Specifications - Technical Data

Model Trommel Screen (mm) Wheel Washer(mm) Dewatering Screen(mm) Overall Size (mm) Overall Weight (kg) Power(kw)
SX26-15 800*1800 2600*1100 2500*3000 7400*3100*2800 7500 37.5
