High Voltage Aluminum Core Power Cable

English name : High Voltage Aluminum Core Power Cable

Description

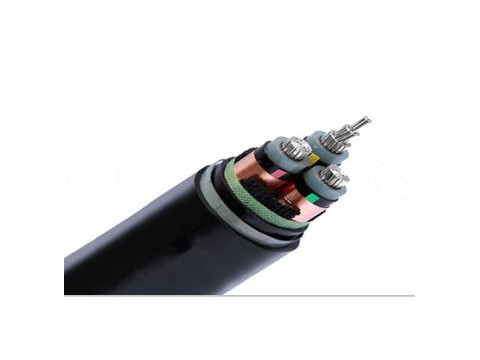

Construction: Compacted stranded circular aluminium conductor, extruded semi-conducting compound as conductor screen, cross-linked polyethylene(XLPE) insulation, semi-conducting compound as insulation screen, copper tape or combination of copper wire and tape as metallic screen, three cores assembled together with non-hygroscopic polypropylene filler, wrapped with binder tape, PVC or PE outer sheath.

U0 is the rated power frequency voltage between conductor and earth or metallic screen for which the cable is designed;

U is the rated power frequency voltage between conductors for which the cable is designed;

Um is the maximum value of the “highest system voltage” for which the equipment may be used.

Max. permissible continuous operating temperature of conductor: 90 °C

Max. temperature of conductor during short-circuit (5s max. duration) shall not exceed: 250 °C

The ambient temperature under installation should not be lower than: 0 °C

category: High Voltage Power Cable

The bending radius of cable is recommended as following:

For single core cable: not less than 20 times of the diameter of cable

For three core cable: not less than 15 times of the diameter of cable

Manufacturing Standards : GB/T 12706-2008, IEC 60502-2

Type	Description	No. of cores	Nominal cross section of conductor
YJLV	Aluminium conductor XLPE insulation PVC outer sheathPower Cable	1 or 3	25~800mm²
YJLY	Aluminium conductor XLPE insulation PE outer sheath Power Cable	1 or 3	25~800mm²
ZA-YJLV ZB-YJLV ZC-YJLV	Aluminium conductor XLPE insulation flame-retardant Power Cable	1 or 3	25~800mm²
WDZA-YJLY WDZB-YJLY WDZC-YJLY	Aluminium conductor XLPE insulation Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable	1 or 3	25~800mm²

Application

The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, outdoors, in tunnel or in cable trench, unable to bear external mechanical force.

Single core cable in magnetic duct is not permissible.

Packing :

1.Lengths:100m/roll,200m/roll,300m/roll,100yard/roll accroding to customes requirement.
2.Inner Packing:carton box,pull out box,pallet avilable
3.Outer Packing:carton box,pull out box,pallet avilable
