Quick Information
- Brand Name:Ruitian or OEM
- Place of Origin:China
- Model Number :YJLV22
- Application :Underground
- Conductor Material :Aluminum
- Insulation Material :XLPE
- Jacket :PVC
- Type :Low Voltage
- Number of Conductors :1 2 3 4 5 3+1 3+2 4+1
Description

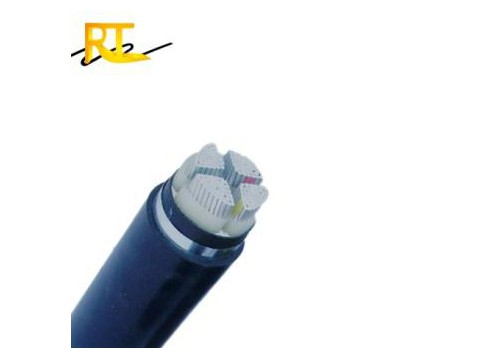

English name: Aluminum Core XlPE Low Voltage Cable
Scope
This product is suitable for frequency 0.6/1KV and below rated voltage distribution networks or industrial installations in fixed installations.
Operating Characteristics
Rated voltage: 0.6/1(1.2)kv(Low Voltage Power Cable)
Max. permissible continuous operating temperature of conductor: 90 °C
Max. temperature of conductor during short-circuit (5s max. duration) shall not exceed: 250 °C
The ambient temperature under installation should not be lower than: 0 °C
Description
Type | Description | No. of cores |
Nominal cross section of conductor |
YJLV22 |
Aluminium conductor XLPE insulation Steel Tape Armoured PVC outer sheath Power Cable |
1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm² |
YJLV23 |
Aluminium conductor XLPE insulation Steel Tape Armoured PE outer sheath Power Cable |
1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm² |
ZA-YJLV22 ZB-YJLV22 ZC-YJLV22 |
Aluminium conductor XLPE insulation Steel Tape Armoured flame-retardant Power Cable |
1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm² |
WDZA-YJLY23 WDZB-YJLY23 WDZC-YJLY23 |
Aluminium conductor XLPE insulation Steel Tape Armoured Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable |
1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm² |
The bending radius of cable is recommended as following
For single core cable: not less than 15 times of the diameter of cable
For multi-core cable: not less than 12 times of the diameter of cable
When the armoured single core cable used for Alternative Current(AC) system, the armoured material should be non-magnetic.
Manufacturing Standards
The product according to GB/T12706 " rated voltage 35KV and below copper, aluminum plastic insulated power cables " standards, while also based on user needs by the International Electrotechnical Commission standard IEC, British Standards , the German standards and U.S. standards.
Application
Indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single-core cables laid in magnetic ducts are not allowed .
Packing
1.Lengths:100m/roll,200m/roll,300m/roll,100yard/roll accroding to customes requirement.
2.Inner Packing:carton box,pull out box,pallet avilable
3.Outer Packing:carton box,pull out box,pallet avilable
Ruitian Wire&Cable is always insist on “Living by Quality, Develop by Credit” and aimed at creating biggest value for customers. Ruitian Wire&Cable is always ready to serve you.
Certificates
- CCC :2009010105327462
Price
- Delivery Port :Tianjin
Packaging & Delivery
- Packing :As your demands
- Delivery Lead Time :within 10 days after receiving your payment
- Supply Ability :500 thousand M / month
