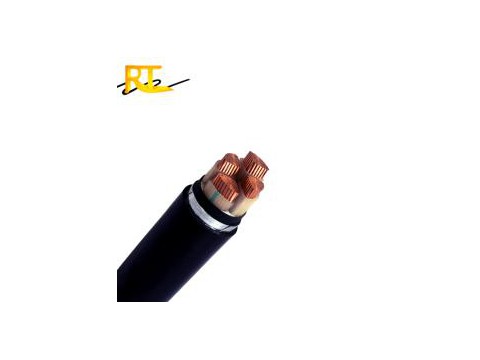

0.6/1kv Copper Core Steel Tape Armored Cable

English name: 0.6/1kv Copper Core Steel Tape Armored Cable

Product Standard:

The product according to GB/T12706 " rated voltage 35KV and below copper, aluminum plastic insulated power cables " standards, while also based on user needs by the International Electrotechnical Commission standard IEC, British Standards , the German standards and U.S. standards.

Scope

This product is suitable for frequency 0.6/1KV(Low Voltage Power Cable) and below rated voltage distribution networks or industrial installations in fixed installations.

Use features

Rated power frequency voltage U0 / U is 0.6/1KV.

Allow cable conductor maximum temperature is 90 ℃.

Short (the longest duration of no more than 5s) conductor temperature does not exceed 250 ℃.

The ambient temperature should not be less than 0 ℃.

Cable bend radius of not less than 15 times the cable diameter.

Description

Type	Description	No. of cores	Nominal cross section of conductor
YJV22	Copper conductor XLPE insulation Steel Tape Armoured PVC outer sheath Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm²
YJV23	Copper conductor XLPE insulation Steel Tape Armoured PE outer sheath Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm²
ZA-YJV22 ZB-YJV22 ZC-YJV22	Copper conductor XLPE insulation Steel Tape Armoured flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm²
WDZA-YJY23 WDZB-YJY23 WDZC-YJY23	Copper conductor XLPE insulation Steel Tape Armoured Low Smoke Halogen Free Or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm²
NH-YJV22	Copper conductor XLPE insulation Steel Tape Armoured fire-resistant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm²

Application

Indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single-core cables laid in magnetic ducts are not allowed .

Packing :

1.Lengths:100m/roll,200m/roll,300m/roll,100yard/roll accroding to customes requirement.
2.Inner Packing:carton box,pull out box,pallet avilable
3.Outer Packing:carton box,pull out box,pallet avilable
