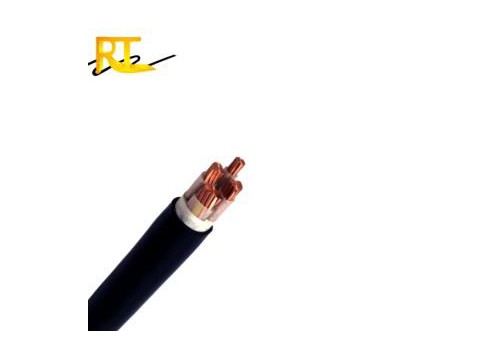

Copper Core XLPE Low Voltage Cable

English name : Copper Core Xlpe Low Voltage Cable

Operating Characteristics

Rated voltage: 0.6/1(1.2)kV

1. Cable conductor Max work temperature XLPE insulation 90℃.

2. Short circuit XLPE insulation cable conductor Max work temperature no more than 250°C，duration time no more than 5s.

3. When install the cable, the work temperature should not lower than 0°C.

4. Cable permission Min bending radius:

single core cable, non armored cable is 20D, armored is 15D;Three cores cable non armored cable is 15D, armored is 12D;

D is cable real outer diameter.

Application

Indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single-core cables laid in magnetic ducts are not allowed .

Description

Type	Description	No. of cores	Nominal cross section of conductor
YJV	Copper conductor XLPE insulation PVC outer sheath Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm²
YJY	Copper conductor XLPE insulation PE outer sheath Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm²
ZA-YJV ZB-YJV ZC-YJV	Copper conductor XLPE insulation flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm²
WDZA-YJY WDZB-YJY WDZC-YJY	Copper conductor XLPE insulation Low Smoke Halogen Free Zero Halogen (LSHF or LSZH) flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm²
NH-YJV	Copper conductor XLPE insulation fire-resistant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm²

Packing :

1.Lengths:100m/roll,200m/roll,300m/roll,100yard/roll accroding to customes requirement.
2.Inner Packing:carton box,pull out box,pallet avilable
3.Outer Packing:carton box,pull out box,pallet avilable
