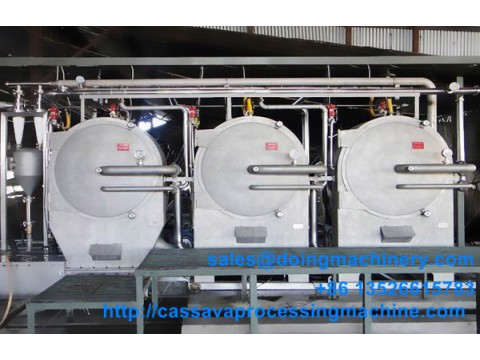

Horizontal starch centrifugal screen is a professional starch extraction equipment for potato starch
production, mainly used for potato starch liquid washing and water
separator. Compared to vertical centrifugal sieve, the horizontal starch centrifugal screen has advantages as below:
1. Larger capacity, more stable, higher potato starch extraction rate, more thorough discharging and easy to install.
2. This horizontal centrifugal sieve fully automatic design, controlled by CIP system, easy to operation.
3.
Under the action of the backwash tube on the back of the screen, it can
remove the fine particles adsorbed by the sieve, effectively avoid the
sieve blocking and ensure the normal operation of the centrifugal sieve.
Horizontal starch centrifugal screen working principle:
Potato
after rasping and desanding, the potato starch milk enter the bottom of
the sieve evenly, the sieve basket make high speed rotation driven by
the drive part. The starch milk enters the sieve surface through the
powder mechanism. Under the action of gravity and centrifugal force, the
starch milk moves in a circle along the sieve and moves along the edge
of the starch centrifugal screen.
Under the washing water system, small starch granules discharge from
the sieve in the processing, large starch granules can't through the
sieve, gradually sinking into the slag bin and discharged by the slag
pump. The potato residue and starch milk are continuously washed in the
process of moving to the edge of the sieve basket, maximum removal of
free starch absorbed in starch milk. Then the clean starch liquid can be
processing in the following section.
Doing Company starch centrifugal screen technical parameters:
| Basket diameter(mm) | Main shaft speed(r/min) | Working model | Power | Dimension(mm) | Weight(t) |
| 850 | 800-1600 | Continuous | 18.5/22/30/37 | 1200×1900×2100 | 1.5 |
