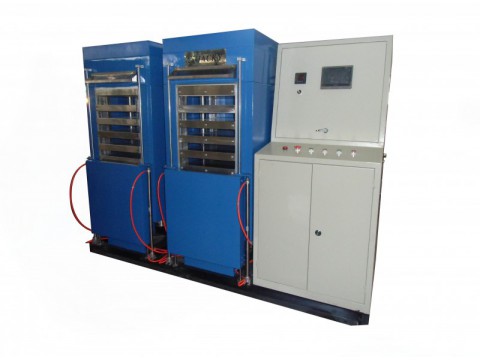

AU5200PLC Stengthen model automatic laminator
Product introduction：
AU5200PLC Strengthen Model Laminator, adopts advanced touch screen operating table, make operation more vividly, easy tounderstand. feedback quickly ,performance is more stable , effectively lower the wastage. International standard cylinder, single cylinder ejecting ,single cylinder diameter is 180mm, balance and stable laminating plate is aluminum alloy ,heating quickly ,suitable for professional card factory for manufacturing IC,ID inlay and smart card ,plain ID card.
Technical Parameter:
|
Model |
AU5200PLC Strengthen Model Laminator |
|
Size of screen |
imported 5.7” color screen |
|
Control method |
PLC |
|
Cool method |
Water cycle |
|
Heating method |
Electric power |
|
Pressure stages |
Heating/5 stages ,cooling/1stage |
|
Temperature precision |
±2（℃） |
|
Uploading method |
Manual |
|
Heating plate materials |
Aluminum 50mm thickness |
|
Distance of daylights |
60mm |
|
Number of hydro-cylinder |
Single |
|
Size of laminating plate |
420mm×520mm |
|
Max Size of card materials |
400mm×520mm |
|
Laminating layers |
5 heating openings and 5 cooling openings |
|
Power supply |
380V 50HZ/ 22KW |
|
Overall dimension |
2300mm×630mm×1650mm |
|
Weight |
2.8t |
|
Special function |
Automatic oil return valve, photoelectricity switch controlling heating tower closing |
