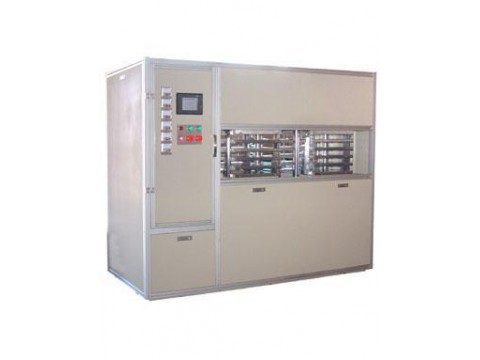

5200YL Laminator
Product introduction：
It is professional for laminating smart cards, aluminum laminating plate, changeable frequence hydraulic pressing, 4 hydraulic cylinders muti-steps of pressure, temperature controlling module , PLC controlling .
Parameter：
Working pressure ：18MPa
Power：3phases AC380V 50Hz
Sum power： 30KW
Laminating towers：2 （hot pressing：5，cold pressing：5）
Controlling method：PLC
Laminating size：420mm×520mm
Weight：2500kg
Size：2500mm(L)×1400(W)×1700mm(H)
