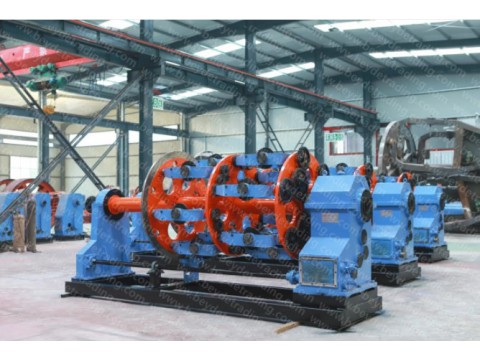

cable manufacturing machine. cable makers.jumper cable.twisting machine planetary cabler
Click image to view original image
Brand: beyde
Price: 10000.00USD/SET
Min.Order: 1 SET
Supply 1000 SET
Delivery: Shipment within 90 days since the date of payment
Address: China
Valid until: 2020-01-31 [Expired]
Updated on: 2018-06-10 13:44
Hits: 20468
Company Detail


Details

Application: The machine is used for stranding control cable, copper cores, ACSR, Aluminum and copper conductor, and needed by big section of steel stranded wire and steel wire rope making

b) Component: Central pay-off device, mainframes of 6-bobbin, 12- bobbin, 18- bobbin, 24- bobbin, 30- bobbin, die holder, taping device, armouring device, traction, take-up and traverse device, transmission system and electric control system.

c) Technical Parameter:

Specification JLY-400 JLY-500 JLY-630
Dia. of inlet wire( mm) 7 8 10
RPM Max speed(r/min) 127 118 85
Stranding pitch(mm) 48-1315 48-1315 58-1280
Taping Speed(r/min) 188-419
Taping Pitch(mm) 10-205
RPM of armouring head 188-419
Pitch of armouring head 10-205
