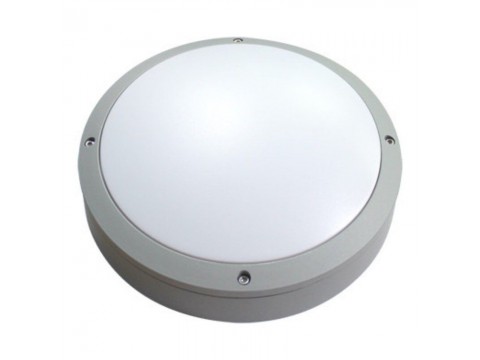

Description : led bunker light is a series of production with die cast Aluminium housing ,IP65
rate .IK09 suitable for applications both indoor and outdoor , such for the moisture areas like
spa ,saunacar parking ,garden ,villas .the 20W bulkhead light can be equipped with motion sensor as well as
emergency pack . it's an excellent lighting solution for both commercial ,public and security lighting .
Specification for 20W led bunker light
Power:20W
Size: 270*270*80mm
Voltage:90-275VAC
CCT: 3000K/4500K/6000K
IP rate : IP65
IK rate : IK09
Luminous Flux :1600lm
Finishing Colour : White/Grey/Black
LED bunker light Paramters :
| Model Number | SP-MLGC-270 |
| Brand | Superolux |
| LED Light Source | SMD Epistar chip |
| Dimesion | 270x270x90mm |
| LED Luminous Efficiency | 80lm/w |
| Lamp Total Power | 30W |
| Power Efficiency | 0.9 |
| Finsihing Colour | Grey /Black /White |
| Color Rendering Index | Ra >80 |
| Color Temperature | warm white: 2800-3200 k |
| natural white: 4000-4500 k | |
| cool white:5500-6500 k | |
| Beam Angle | 120degree |
| Driver | dimmable /Non-dimmable |
| Input Voltage | AC100-240V |
| Frequency Range | 50/60 Hz |
| Power Factor | ≥0.90 |
| Total Harmonic Distortion(THD) | < 20% |
|
|
-40°C--+80°C |
| Working Tempeature | -40°C--+50°C; 10%-95%RH |
| Lifetime | > 50,000 hours |
| IK rate | IK10 |
| Lamp Body Material | Die cast aliuium |
| IP Rate | IP65 |
Features for LED bunker light :
1. Die cast Aluminium housing .
2. LED board light resource , with smd chips , the light is more uniform ,50000hours life span
3. IK09 rate ,suitable for applications both indoor and outdoor , impact resistance .
Functions for LED bulkhead light .
1.motion sensor can be provided
2.emergency versions can be provided
Time ,brightness can be adjusted in dimmable or emergency period
