High Frequency Welded Tube Mill Line ERW76

ERW76 H.F. Straight Welded Pipe Production Line

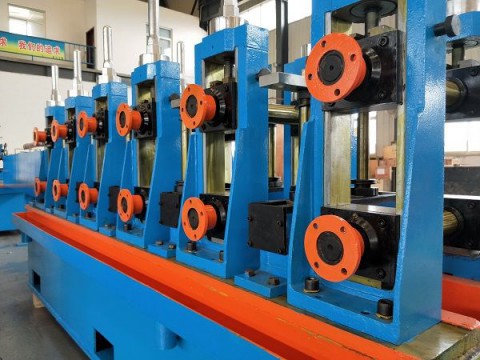

ERW76 high frequency longitudinal welded pipe production line / pipe making machine / tube mill is designed to produce welded pipes of 32mm-76mm in OD and 1.2mm-4.0mm in wall thickness, as well as corresponding square and rectangular pipe.

Products: GI, carbon steel and stainless steel tubes for metallurgy, construction, transportation, machinery and vehicle industries.

Equipment advantages

√ High production efficiency, line speed can be up to 120m/min.
√ High yielding, the machine works stably at a high speed, which improves the yielding of products.
√ Low wastage,  low unit wastage and low production cost.
√ High accuracy, diameter error is only 0.5/100 of the pipe OD.


Basic Technical Information of Welded Pipe Production Line

Product&yield	Round Pipe	32mm-76mm                   Thickness:1.2mm-4.0mm
	Square & rectangle tube	25mm×25mm -60mm×60mm     Thickness:1.2mm-3.0mm
	Length	6m-12m                       Length Tolerance: ±3mm
	Production Speed	20-120 m/min
	Production capacity	20,000ton/year
Consumption	Mill installed capacity	120 kw
	Line Area	70m(length) ×5m (width)
	worker	6-8 workers
Raw Material	Carbon Steel coil	Q235B(ASTM GR·D,σs 230)
	Width	105mm-240mm                 Thickness: 1.2mm-4.0mm
	Coil ID	450-520mm
	Coil OD	Max 1600mm
	Coil Weight	2.0t

Round pipe	Cold roll forming process	Good roller design
Square & rectangular pipe	General round-to-square process	Stable forming process
	Round to square with turkshead	Good pipe quality, reach same wall thickness with round pipe
