Direct Square To Square Pipe Mill

Click image to view original image
Brand: zhongtai
Price: Negotiable
Min.Order: 1 set
Supply
Delivery: Shipment within 90 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2018-11-13 11:56
Hits: 26353
Enquiry
Company Detail


Details

Quick Information

  • Brand Name:Zhongtai
  • Place of Origin:China

Description

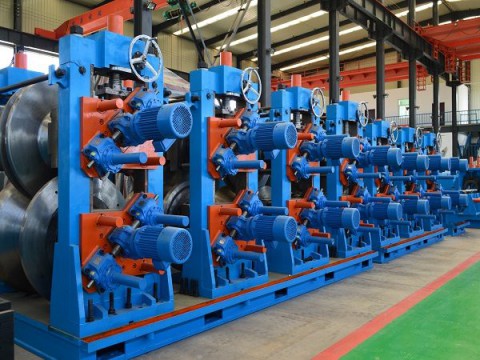

Direct Square to Square Pipe Mill

It is directly roll the steel strip and bend it to square & rectangular shape, then weld it to finish the formation.

Characteristics and Advantages:

1).Compare with round into square&rectangle forming way,this way is better for the shape at the edge of cross section,comparatively, semi-diameter of inner arc is Small,and the brim is flat,outlook is regular.
2).the whole line load is low ,especially the sizing parts.
3).The width of steel strip is small about 2.4-3% than round into square & rectangle,it can save the consume of raw material.
4).It adapt the multi-point bending way, avoid the axial force and side abrasion, reduce the forming step while ensure the quality,meanwhile it reduce the power wastage and roller abrasion.
5).It adapt the combined type roller on the most of the stands,it realize that one set of roller can produce dozens of square&rectangle  pipe with different specification,it decrease the store of roller,low the cost about 80% on roller, Fast the bankroll turnover, short the time one new product design.

Note: We can design and manufacture pipe making machine according to customers' requirements.


No. Model Products Range Thickness(mm) Speed(m/min)
1 LW600 60x60-150x150  70x50-200x100 1.5-8 20-70
2 LW800 70x70-200x200  90x50-250x150 2-10 20-60
3 LW1000 90x90-250x250 120x60-300x200 3-12.7 15-50
4 LW1200 120x120-300x300 140x100-400x200 4-14 10-40
5 LW1600 170x170-400x400 200x150-500x300 4-16 10-30
6 LW2000 200x200-500x500 250x150-600x400 4-20 8-20





Price

  • Delivery Port :Tianjin

Packaging & Delivery

  • Packing :container
  • Delivery Lead Time :2-3 months
