Quick Information
- Brand Name:Zhongtai
- Place of Origin:China
Description

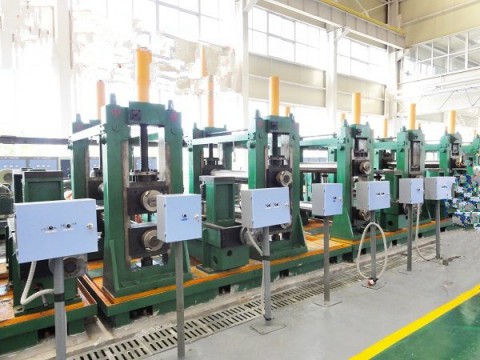

Abroach Cold Rolled Section Steel Production Line
It is specialized for cold rolled section steel with wide spread uses for metallurgy, construction, transportation, machinery and vehicle industries. It takes steel strip as raw material, produces cold rolled section steel by cold rolled section forming technology according to relevant request. This kind of technology is advanced and reliable, PROFIBUS technology is also adopted to the control system. All of these ensured highly synchronization accuracy and best product quality. All the indicators and operational costs are controlled at the lowest level, which is greatly rewarded by the producers.
Note: We can design and manufacture pipe making machine according to customers' requirements.
| Model |
Strip width mm |
Size mm |
Thickness mm |
Forming Speed m/min |
| Lw100 | 40-100 | 10x10-25x25 | 0.5-2.0 | 20-80 |
| LW200 | 80-200 | 20x20-50x50 | 1.0-3.0 | 20-80 |
| LW400 | 200-400 | 50x50-100x100 | 2.0-5.0 | 20-60 |
| LW600 | 240-600 | 60x60-150x150 | 2.0-7.0 | 20-60 |
| LW800 | 320-800 | 80x80-200x200 | 2.5-10.0 | 20-40 |
| LW1050 | 400-1050 | 100x100-250x250 | 3.0-12.7 | 15-30 |
| LW1250 | 480-1250 | 120x120-300x300 | 3.0-14.0 | 10-25 |
| LW1400 | 600-1400 | 150x150-350x350 | 4.0-16.0 | 8-20 |
| LW1600 | 800-1600 | 200x200-400x400 | 6.0-18.0 | 8-15 |
| LW2000 | 1000-2000 | 250x250-500x500 | 6.0-20.0 | 8-15 |
| LW2200 | 1100-2200 | 280x280-550x550 | 6.0-22.0 | 8-15 |
Packaging & Delivery
- Packing :container
- Delivery Lead Time :2-3 months
