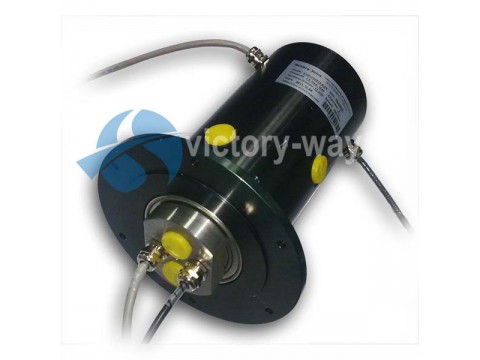

Customized Pneumatic & Electrical Rotary Joint Slip Ring

Click image to view original image
Brand: Victory-way
Price: 1.00USD/Combined S
Min.Order: 1 Combined S
Supply
Delivery: Shipment within 9 days since the date of payment
Address: China
Valid until: 2020-08-26 [Expired]
Updated on: 2019-03-08 09:13
Hits: 21075
Company Detail


Details

HS-FA2X1/2-S24-SF hybrid slip ring is designed to setup at the end of shaft or side of the machine, fit to pass fluid +signal or low current power. It is set in the body of rotary joint, the wire of rotor will lead out from the center. Stator side has flanges for setup.

Feature:
1) High quality bearing on both sides of shaft for smoothly operating;
2) No need to maintain;
3) High quality sealing materials for long life circle;
4) Special shaft provides an excellent wear resistance;
5) Al, Bass, stainless steel body for option;
6) Specially designed leak detection holes;
7) Stator side has flanges for setup.
Technical spec:
Speed 200Rpm
Operate temperature -30~90℃
protect degree IP65
Housing Al alloy

Part A:(Electornic Slip Rings)

Channels

12 rings(for signal)

Operation Voltage

0~240VAC/DC

Current

2A/Ring

Contact material

Precious metal

Electric Noise

Max.40m Ω

Dielectric strength

500VAC@50Hz,60s

Insulation resistance

500MΩ @600VDC

Part B:(Rotary Joint)
Channels 2 Ways
Pressure 1.6Mpa Max
Media compressed air/ vacuum


Our products are widely used in: Security, Factory Automation, Electric Instrumentation, Medical, Aerospace, Marine,Civil and Military Fields.Such as: Crane, Giant Wheel, Cotton Picker, Medical Equipment, Detector,Rotary Tables,Robots,Strander, Webcam, Automatic Revolving Door,Exhibit / Display Equipment, Food Manufacturing Machine,Packaging Machine,Amusement Equipment, Irrigation Machine,Heated Rollers etc.

More product information welcome to visit our website www.victory-way.com.
