DOING waste tire pyrolysis plant

Click image to view original image
Brand: DOING
Certification:: CE&ISO9001
Warranty:: 1 year
Material of reactor:: standard Q245R boiler steel
Price: 50000.00USD/set
Min.Order: 1 set
Supply 25 set
Delivery: Shipment within 3 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2018-07-06 17:39
Hits: 22493
Buy
Company Detail
  • Bonnie
  •   [Credit File]
  • Already 0.00 USDSecurity deposit
  • ContactsBonnie(Ms.)  sales manager
  • Member [Offline] [Add to my friend] [Send mail]
  • Phone
  • Mobile
  • AreaChina
  • AddressRoom 1408, 14th Floor, Building 9, No.133 Yaozhai Road, Jinshui District, Zhengzhou City, Henan Province, China


Details

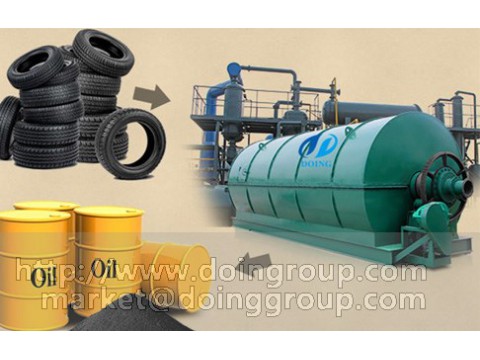

The waste tire pyrolysis plant manufactured by DoingGroup adopts the latest pyrolysis technology, which aims at converting waste plastics into pyrolysis oil, carbon black and steel wire without any pollution.

The working process of waste tire pyrolysis plant is described as follows:



1. Put the waste plastic into the reactor.

2. Heat the reactor by using fuel materials, such as coal, charcoal, fuel gas, wood etc. The reactor will be slowly heated, when the temperature reaches around 250 degree, the oil gas will be produced.

3. A part of oil gas will go to the condensing system to form liquid oil. We adopt new-type tubular condenser which can improve the oil yield efficiency. The gas which can not be liquefied under normal pressure will go back to combustion system. It can be used as fuel material to heat the reactor, which will save energy for the waste tire pyrolysis plant.

4. After finishing oil production, the temperature of reactor will be down. At the same time, we can get carbon black and steel wire.

5. Lastly, the smoke produced from reactor can achieve national emission standard after being processed by the dedusting system.

Application of the end products from waste tire pyrolysis plant :


Pyrolysis basically involves the thermal decomposition of the plastic at high temperatures (300–900°C) in an oxygen-free atmosphere. Through the plastic pyrolysis plant, waste plastics can be effectively recycled into plastic oil, carbon black and steel wire.

Both the fuel oil and the carbon black produced by the cracking process can be directly marketed. If you want to get higher market value, you can further process them ,and we have specialized equipment for this,waste oil to diesel refining machine ,carbon briquetting machine and carbon grinding machine. Fuel oil can be refined to light diesel oil, carbon black can be made into carbon black pellets for combustion, or milling to carbon black fine powder, used in the production of plastics, rubber soles, paints and so on. Non-condensable gases can be recovered as fuel heating the reactor, which saves fuel costs.

Main features and advantages of Doing waste tire pyrolysis plant :


1, Safe

Hydroseal system will prevent exhaust gas from going back to condensers and reactor. Thus, unnecessary accident can be avoided. In addition, our plants are equipped with thermometer, pressure gauge, safety valve and electric control system. once something dangerous happen, the technicians can know and take relevant measures in time.

2, Energy-saving

The reactor of our waste tire pyrolysis plant has the specific warm keeping design which can save fuel 30%-40%.  Doing waste tire pyrolysis plant is also equipped with extra gas recycling system. And the gas can be recycled to heat the reactor as fuel, which will save energy for the whole working process.

3, Environmental production

In the de-dusting system, we use three steps to dedust the extra gas. More than 95% of the dust would be removed. The released gas is pollution-free and can be discharged in the air directly.

Besides, we also provide fully continuous waste tyre pyrolysis plant, waste oil to diesel refining machineand copper wire recycling machine for you to choose. They all have passed CE, ISO, SGS certificates. If you are interested in our plants, warmly welcome to contact us or visit our factory.
