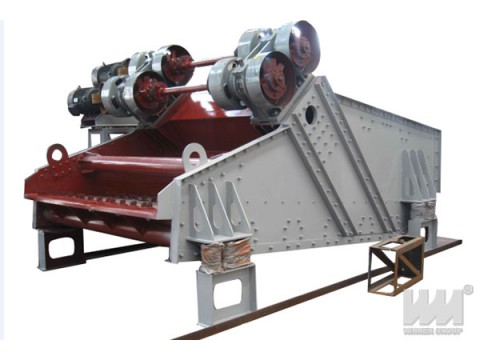

Arthropod dewatering sculping vibrating screen

Arthropod dewatering sculping vibrating screen

Overview of Arthropod dewatering sculping vibrating screen:

1. Arthropod dewatering sculping screen is my company developed and obtained national patent dewatering, off- medium, desliming screening equipment.

2.Using linear equal-thickness grading principle, unit combination, sub-section vibration, secondary damping, general motor drive or self vibration source group structure.

3.Arthropod dewatering sculping screen consists of sieve body ,a damping spring, vibration damping device, secondary damping spring, motor and its bracket and other components.

Principle of Arthropod dewatering sculping vibrating screen:

1.Arthropod dewatering sculping screen is composed of multi-section screen core, section vibration, the overall arrangement in accordance with the principle of equal thickness screening for the different materials at the scene, each section of the screening core excitation angle and screen surface can be adjusted, to achieve the best combination of capacity and screening efficiency.

2.Sieve by two motors driven exciter do reverse self synchronous rotation, the screen body can produce linear motion.

Features of Arthropod dewatering sculping vibrating screen:

1.Screen frame side panels with high quality steel production, side panels and beams, exciter base with high strength bolts or ring slot rivets connected, sturdy and reliable structure.

2.Motor does not participate in the vibration, with the universal coupling and exciter connected. (Except from the vibration source group)

3. Arthropod dewatering sculping screen with vibration damping device and secondary damping spring.

4. Arthropod dewatering sculping screen with light weight, low noise, low energy consumption, high efficiency, long life, simple structure, easy maintenance.

5.Using the national patent sieve plate, self-vibration source group, with a large capacity, high efficiency dewatering, energy saving, long life and other significant advantages.

Applications of Arthropod dewatering sculping vibrating screen:

1. Arthropod dewatering sculping screen is the coal industry, washing, desliming, off- medium, dewatering operation of the ideal equipment.

2.Can also be used for fine slime finishing operations, will get better economic benefits.

3.Also suitable for old cold building renovation project, without changing the surrounding environment can be completed, cost savings.
