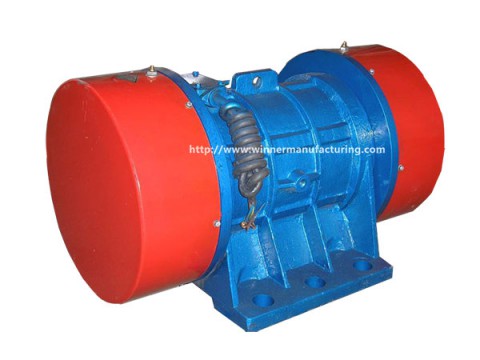

Low Price WVB Vibration Motor from Winner
Product overview of:
1.WVB vibration motor is my company to introduce Germany and Italy technology development of new vibration motor products, Vibration motor compact design, high efficiency, energy saving, environmental protection, safe and reliable operation, easy installation and maintenance, simplify the structure, reduce costs, making greater shaker for material handling capacity.
2. Excitation force can be very easily within a certain range of non-polar adjustment to meet a variety of operational needs.
3.The use of new sealing technology and imported seals, greatly improving the vibration motor dust and moisture, products in a variety of high dust and humidity places safe and stable operation.
4. The advanced design and sophisticated manufacturing process to ensure that products have a longer life.
Operating principle:
WVB vibrating motor is a set of adjustable eccentric block at both ends of the shaft of the shaft of the rotor shaft, the centrifugal force generated by the eccentric block is used to get the exciting force.
Product Applications:
1. It is used in silos, hoppers, chute wall vibration.
2. Is a self-synchronous linear vibrating screen, vibrating feeder, vibration conveyor and other vibration machinery excitation source.
3. Is the metallurgy, mining, coal, building materials, chemical industry, the ideal equipment, a wide range of applications.
Product features of:
1. Low noise due to vibration generated by smooth rotation.
2. Fully enclosed structure, which can work under any dust condition.
3. Long service life, bearing life of 2 to 5,000 hours, 4, 6, 8pole up to 10,000 hours.
4. Just adjust the angle of the eccentric block, you can adjust the exciting force.
5. Multiple units can be synthesized into a variety of vibration forms to complete a variety of operating requirements.
6. Rich models, complete specifications, to meet the needs of various types of vibration machinery work.
Conditions of Use:
1. Rated voltage: 380V -660V;
2. Rated frequency: 50HZ-60HZ;
3. Protection class: IP55;
4.Allow the ambient temperature: 40 ℃ -60 ℃;
5. Insulation class: Class B.
