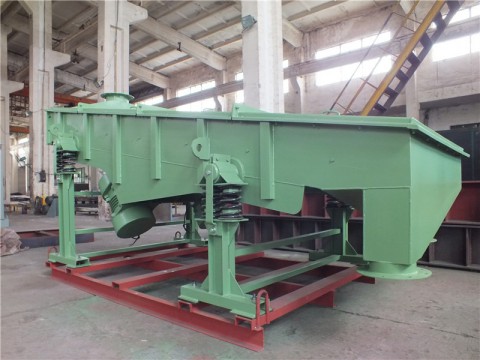

WZS series stainless steel linear vibrating screen

WZS series stainless steel linear vibrating screen

Introduction Overview:

The WZS series stainless steel linear vibrating screen produced by our company has the advantages of high reliability, low consumption, low noise, long service life, high stability, high screening efficiency and so on. Often cooperate with other mechanical equipment, such as conveyor, hoist, crusher, etc., to complete the whole assembly line automation.

Application:

Mainly used for abrasive abrasive materials, chemicals, plastics, medicine, resin powder, ceramic raw materials, metallurgy, building materials, food, fertilizer and other industries in the dry powder, fine granular or fine powder materials screening.

Advantages:

1.The screening machine is suitable for high capacity of rough sub operations.

2.Materials on the sieve surface has a long stroke, large amount of treatment.

3.Materials screening and parallel transmission can be carried out simultaneously.

4.It can adjust the screen surface inclination to balance the accuracy of screen production.

Stainless steel straight screen principle:

1.When the two vibration motor to do synchronization, reverse rotation, the eccentric block generated by the exciting force in the direction parallel to the motor axis offset each other in the direction perpendicular to the motor shaft stacked together, so the sieve machine movement trajectory For a straight line.

2.The two motor shafts have an inclination angle in the vertical direction. In the exciting force and the self-gravity of the material, the material is jumped on the screen surface or moves forward straight forward, so as to achieve the purpose of screening and grading the material.

3.The Applicable to the particle size of 0.074-5mm, water content of less than 7%, a variety of non-sticky dry powder or granular material screening. Maximum particle size of not more than 10mm.
