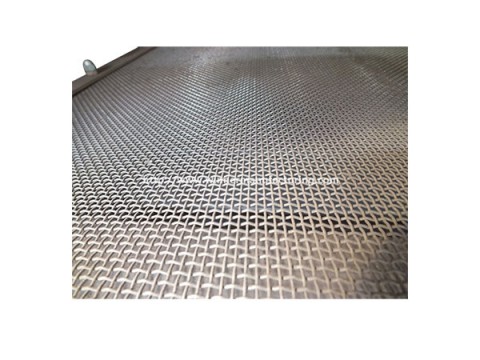

Woven wire mesh sieve plate

Woven wire mesh sieve plate

Sieve plate role：

1.The sieve plate (net) of the vibrating screen is the working plane of the material sieving, which can bear the impact force of the material from the last working environment and bear the load and mechanical vibration (including the secondary vibration) of the material; it is both sieving Equipment, but also has the function of transporting the material on the sieve plate.

2.Vibrating sieve vibration, the sieve plate through the different shape of the material, the size of the material, under the action of the amplitude, the different size of the material separation, to achieve the purpose of classification.

Features:

1.metal wire mesh sieve plate 4-125mm, wire diameter of 1.6-12.5mm.

2.Sieve surface divided by two kinds of coarse and fine pores. Coarse mesh woven mesh manufacturing materials, low-carbon structural steel wire, spring steel wire and stainless steel wire. Fine pores mesh is generally made of low carbon steel, brass, tin, tin table and stainless steel and other materials, a special knitting machine weaving.

3. metal wire mesh sieve plate opening rate: 36% -80%, sieve size: 0.03-16mm.

4. The angle of the sieve is 18 ° -30 °.

5. Screening effect is good, not easy to plug holes.

6. Light weight, high opening rate.

7. Fine-grained material easy to fall off, high screening efficiency.

Applications:

1.Multi-layer vibrating screen of gravel field.

2.Iron mill sieve, lime sieve.

3.Coal washing plant after washing coal screening.

4.Woven wire mesh sieve plate widely used for metallurgy, mining, coal, building materials, electric power, chemical and other materials screening industry.
