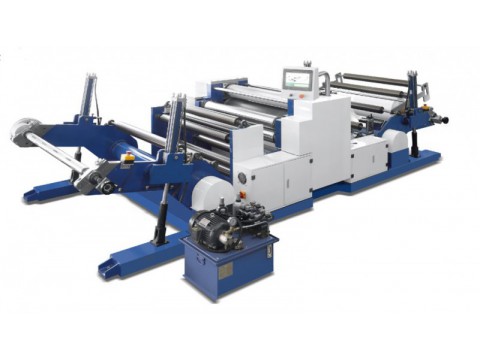

Automatic Roll Embossing Machine model YW-AZ is automatic equipment with mechanical, electrical and hydraulic system. It is suitable for embossing all kinds of paper and plastic film rolls into exquisite design. It adopts automatic hydraulic lifting system, automatic heating and cooling system, frequency converter to control speed, automatic tension control system and automatic hydraulic system etc.
Main configuration:
PLC control, HMI
Two heating rollers
The front and the back air shaft with automatic hydraulic lift
Pneumatic roller
Frequency converter control
Rectification system
Big hydraulic cylinder
Designed roller
Wool roller
Reducer
Tension control magnetic motor
Technical parameter:
|
Model |
YW-720A-Z |
YW-920A-Z |
YW-1150A-Z |
YW-1300A-Z |
|
Max.embossing speed |
5-60m/min |
5-60m/min |
5-60m/min |
5-60m/min |
|
Embossing width |
680mm |
870mm |
1100mm |
1250mm |
|
Material available |
Paper, Plastic |
Paper, Plastic |
Paper, Plastic |
Paper, Plastic |
|
Operation pressure |
2-10Mpa |
2-10Mpa |
2-10Mpa |
2-10Mpa |
|
Heating temperature |
>200℃ |
>200℃ |
>200℃ |
>200℃ |
|
Main motor power |
20kw |
32kw |
34kw |
34kw |
|
Air pressure |
0.8Mpa |
0.8Mpa |
0.8Mpa |
0.8Mpa |
|
Dimension(LxWxH) |
4800x2600x1450mm |
4800x2800x1450mm |
4800x3000x1450mm |
4800x3200x1450mm |
|
Net weight |
4200kg |
5200kg |
6200kg |
7000kg |
