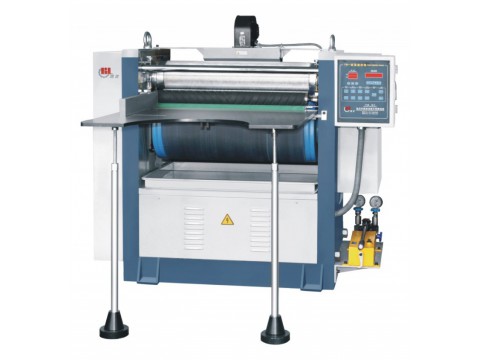

Embossing(Knurling) Machine MODEL YW-C -iseef.com

Click image to view original image
Price: 10.00USD/set
Min.Order: 1 set
Supply 1 set
Delivery: Shipment within 25 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2018-08-08 17:23
Hits: 45258
Buy
Company Detail


Details


Product description:

YW-C is a special equipment with precise process for surface of paper, applying to all kinds of packaging, trademark, invitation card, name card, book cover, various papers, aluminum & plastic compound material, leather and thin metal plate. It is with wrinkle-proof roller structure and electromagnetic clutch protection device. With impressing process by this machine, the surface texture will be greatly improved, it is an ideal equipment in packaging/printing fields for improving product`s level, enhancing anti-forgery and protecting trademark.


Main technical parameter:

Model: YW-720C

Embossing width (mm): 680

Paper Range(g/m): >80

Working Pressure(Mpa): 2-10

Generator Power(kw): 3

Heat Power(kw): 2

Total Weight(kg): 1500

Dimensions(mm): 1700*960*1380



Model: YW-920C

Embossing width (mm): 889

Paper Range(g/m): >80

Working Pressure(Mpa): 2-10

Generator Power(kw): 4

Heat Power(kw): 3

Total Weight(kg): 1800

Dimensions(mm): 1900*960*1380



Model: YW-1150C

Embossing width (mm): 1100

Paper Range(g/m): >80

Working Pressure(Mpa): 2-10

Generator Power(kw): 4

Heat Power(kw): 3

Total Weight(kg): 2200

Dimensions(mm): 2100*960*1380



Model: YW-1300C

Embossing width (mm): 1250

Paper Range(g/m): >80

Working Pressure(Mpa): 2-15

Generator Power(kw): 5.5

Heat Power(kw): 3

Total Weight(kg): 2600

Dimensions(mm): 2300*960*1380



Model: YW-1450C

Embossing width (mm): 1300

Paper Range(g/m): >80

Working Pressure(Mpa): 2-15

Generator Power(kw): 4

Heat Power(kw): 5

Total Weight(kg): 2800

       Dimensions(mm): 2400*960*1380
