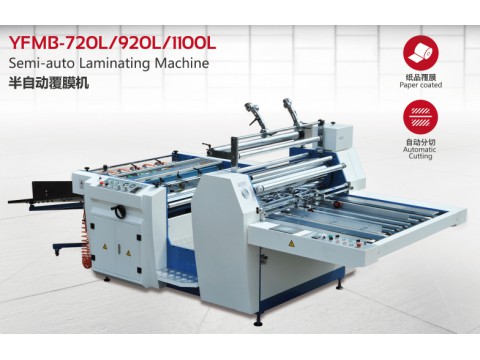

Click image to view original image
Configuration:
- SCHNEIDER frequency inverter equipped for infinite speed variation ensures speed adjustment much more convenient and efficient, and makes the machine run stably and quietly.
- Enlarged chromed heating roller is mounted with built-in oil heating system which provides balanced laminating temperature and owns excellent temperature persistence.
- SCHNEIDER PLC system realizes automatic paper separation, breakdown alert for self-protection etc.
- Pneumatic film unwinding system positions film roll more accurately, and makes the loading and unloading of film roll and film unwinding tension much more convenient.
- Three separating systems are available for different specifications of sheets and film: 1) Flail cutting system 2) serrated perforating wheels 3) carborundum grinding wheel to laminated film.
- Perfected tracking adjusting system makes traction adjustment more convenient and efficient.
- Anti-curvature device and vibrating paper collector ensure paper collection more regular and convenient.
- Slip structure with aisle which convenient to maintenance.
- The vibration collecting table.
- Optional device: electromagnetic heating system with surcharge.
Technical parameter:
Model: YFMB-720L
Max. paper width: 680mm
Paper thickness: 100-500gsm
Laminating speed: 0-30m/min
Gross power: 20kw
Total weight: 1700kgs
Overall dimension: 4600*1560*1500mm
Model: YFMB-920L
Max. paper width: 880mm
Paper thickness: 100-500gsm
Laminating speed: 0-30m/min
Gross power: 22kw
Total weight: 1900kgs
Overall dimension: 4600*1760*1500mm
Model: YFMB-1100L
Max. paper width: 1040mm
Paper thickness: 100-500gsm
Laminating speed: 0-30m/min
Gross power: 24kw
Total weight: 2100kgs
Overall dimension: 4600*1960*1500mm
