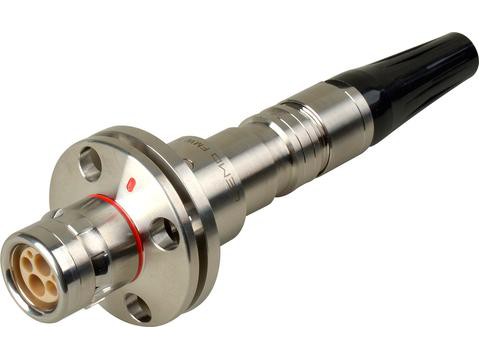

Compatible Lemo push-pull connector-FMW.3K.93C.TLMC96Z

Click image to view original image
Brand: Compatible Lemo
Price: 20.00USD/piece
Min.Order: 10 piece
Supply 1000 piece
Delivery: Shipment within 3 days since the date of payment
Address: China
Valid until: 2021-04-18 [Expired]
Updated on: 2018-08-27 15:53
Hits: 29293
Company Detail


Details

TECHNICAL DETAILS

Mechanics

Shell Style/Model:FM*: Fixed plug with round flange (4 hole fixing), cable adapter, with bend relief nut.

Keying: 5 keys (alpha=95, beta=115, gamma=20, delta=30, plug: female LV, male HV, female FO contacts).

Housing Material: Stainless steel shell, collet nut and latch sleeve, nickel plated brass mid pieces.

Cable Fixing: C96: 8.6 - 9.5 mm

Variant: Z : Nut for fitting a bend relief.

Performance

Configuration: 3K.93C : 2 FO Type F2, 2 HV + 2 LV

Insulator Series:  L: PEEK (UL 94 / V-0/3.2, depends on material thickness)

 Rated Current Cable:  10 Amps.

Specifications

Contact Type: Crimp;

Fiber Optic Contact: Type F2.

Vtest power/signal (AC): 2250V , 1000V;

Working voltage power/signal(AC): 600V , 42V;

Cable type: SMPTE 311M or EBU R100;

Others Endurance (Shell): 5000 mating cycles;

Temp (min / max): -55°C / +200°C;

Humidity (max): <=95% [at 60 deg C /140 F];

Vibration: 15 g [10 Hz - 2000 Hz];

Shock Resistance: 100 g [ 6 ms];

Salt Spray Corrosion: >1000 hr;

Climatical Category: 50/175/21;

Shielding (min): 95 dB (10 MHz);

Shielding (min): 80 dB (1 GHz);
