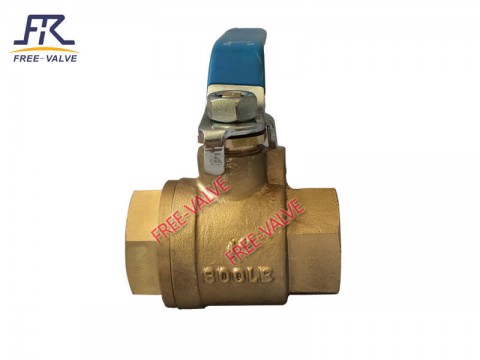

Aluminum Bronze Floating Ball Valve,full port bronze ball valve

Click image to view original image
Brand: FREE-VALVE
Origin: China
price terms: FOB,CIF,FCA,CFR
Payment terms: TT,LC
Price: 100.00USD/Pieces
Min.Order: 1 Pieces
Supply 200 Pieces
Delivery: Shipment within 30 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2019-12-11 14:45
Hits: 45257
Buy
Company Detail


Details

FREE-Valve’s bronze thread ball valve body is manufactured from aluminum bronze.The valve with a bronze or stainless steel blow out-proof stem. With the full port design and brass ball, the ball valve allows maximum flow and minimum pressure drop or turbulence with unobstructed bi-directional flow,so FREE-Valve’s bronze ball valve is a better choice for any bronze valve needs.



Benefits

1.Valve is friendly, quick and easy to install.

2.Manufactured with full bore or necking structure, the one-piece floating ball valve, two-piece floating ball valve and three-piece floating ball valve are all available from us.The two-piece valve is recommended for many applications.

3.The lever handle provides convenient quarter-turn operation and bubble-tight shutoff


Specification

Size Range:3/8" to 2"

Pressure Range :Class150~Class600,1.6MPa~4.0MPa

Body Material  : Bronze

Connect Method :NPT, NPTF, NPSM, UNSF, BSP, BSPT for selecting

Work Temperature:-20 to 120° C

Design standard:ASME B16.34,API6D

Test and Inspect:API598

Face to Face:ASME B16.10

Medium :Water ,oil ,gas ,water,sea water

Driving method : Handle

Application industry

Chemical industry

Oil gas industry

Power/sea water industry
