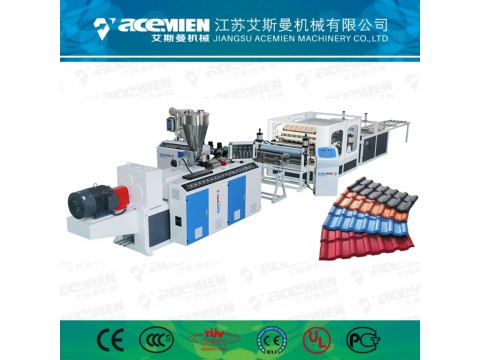

PVC+ASA Co-extrusion Roof tile making machine
Machine list :
|
No. |
Main machine name |
Qty. |
|
1 |
Screw loader |
1set |
|
2 |
SJZ80/156 conical twin-screw extruder |
1set |
|
3 |
Vacuum loader and drying hopper |
1set |
|
4 |
SJ50/30 single screw extruder |
1set |
|
5 |
Extrusion mould and distributor |
1set |
|
6 |
Roof tile forming machine with trimming device |
1set |
|
7 |
Haul off unit |
1set |
|
8 |
Cutter |
1set |
|
9 |
Stacker |
1set |
|
10 |
Ridge tile Oven |
1set |
|
11 |
Ridge tile Forming machine |
1set/4sets |
|
No. |
Auxiliary machine name |
Qty. |
|
12 |
Screw loader |
1set |
|
13 |
Mixer unit |
1set |
|
14 |
Crusher |
1set |
|
15 |
Pulverizer |
1set |
Product info:
|
Raw material & formulation |
Bottom layer: PVC
powder, CaCO3, CPE, PE-WAX, Stearic acid, Compound stabilizer, ACR, paraffin. |
|
Description of final product |
Glazed tile: |
|
Material |
Surface layer |
Bottom layer |
|
Name |
ASA (Granule) |
Mixed by PVC powder, CaCO3, CPE, PE-WAX, Stearic acid, Compound stabilizer, ACR, paraffin |
|
Cost |
USD 3400/T, Need 100g/ square meter |
USD 300-500/T |
|
Weight |
3-5kg / square meter |
|
|
Thickness |
1.5mm,2mm,2.5mm,3mm(adjustable) |
|
|
Profit |
Product cost USD 1.7-USD 3/ square meter |
Normally in market sell at USD 2.7-5 / square meter even more |
Feature of roof tile
1. Heat insulation,
2. Sound insulation,
3. Water resistance,
4. Chemical and alkali resistance,
5. Corrosion proof, fire retardant,
6. Eco friendly,
7. Easy to install and move,
8. Light weight as well as cost effective in installation (as less steel and less overlap)
9. As per the efficiency and benefits it provides.
10. Long service life (> 20 years)
