Introduction

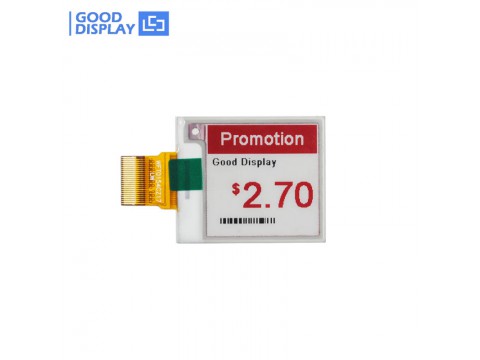

This is an E ink E paper display panel, 1.54 inch, 152x152 resolution, square, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform, supports red, black, and white three-color.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW0154Z17 is a very good choice for applications like shelf label, smart tags, wearable devices, smart home application, industrial instrument, smart cards and other related products.
Features
· Keep displaying the last content when power down.
· Reflect type, sunlight readable, so no backlight, but frontlight is optional.
· Ultra low power consumption, basically power is only required for refreshing.
· SPI interface, for connecting with controller boards
· Come with helpful development resources and manual (STM32 platform )
Main Parameters
1.54inch 152x152 SPI interface e ink e-paper display
| Part Number | GDEW0154Z17 |
| Type | Dot Matrix |
| Resolution | 152*152 |
| Outline Size(mm) | 31.8*37.32*0.98 |
| Active Size(mm) | 27.51*27.51 |
| Pixel Pitch(mm) | 0.181*0.181 |
| Operating Temp. | 0~40C |
| Storage Temp. | -25~60C |
| Connector | 24 Pin FPC, Pitch:0.5mm |
| Max Grayscale | 2 |
| Color | Black,White,Red |
Download
| File Type | Description (Download) | Version | Language | Update Date | Size |
|
|
IC Driver | 1.0 | English | 2017-08-11 | 623.03KB |
|
|
Connector Spec. | 1.0 | English | 2017-08-11 | 1.77MB |
|
.DOC |
Source Code |
1.0 | English | 2017-07-27 | 1.65MB |
