The double-enzyme method of corn syrup production process is first mix corn powder with water making slurry (like produce liquid glucose from starch), jet cooking slurry for liquefaction (liquefaction enzyme), separate protein and other solid impurity , saccharification (saccharification enzyme), decolorization , Ion exchange and evaporation to get required density high quality clear corn glucose syrup.
or phone/ whatsapp +8613526615783 / tel: 0086 371 56771822/ sales@syrupmachine.com

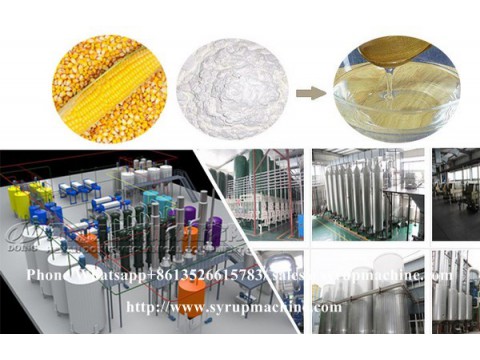

Following is the main corn syrup production equipment and its function introduction:
1. Corn flour/starch processing line: Doing Machinery can manufacturer and supply whole set of syrup machine for you. This is the first step of corn syrup production.
2. Mixing tank: add water and corn flour/starch with a certain proportion, then add enzyme and wait the proceeding of physical reaction between corn flour/starch and enzyme.
3. Liquefaction process: this process requests jet cooker and liquefied tank, made the starch slurry into an operable viscosity.
4. Deproteinization in corn syrup production process: use plate and frame filter press, to remove the protein contain in the liquid.
5. Saccharification: use special saccharification tank, the function is change the liquefied starch into glucose.
6. Decolorization: pump the saccharification liquid into decolorization tank, add activated carbon to complete this process.
7. Decarburization in corn syrup made: this section purpose is remove the activated carbon by plate and frame filter press.
8. Ion exchange system: adopt special ion exchange column, remove the Ca2+ and Mg2+, and adjust PH value and conductance.
9. Evaporation: suggest corn syrup made by three-effect evaporator to get suitable corn syrup, of courcose you can select other evaporator as your requests.
Among is the total introduction of our main corn syrup production equipment.
Our dry milling method for corn syrup manufacturing process: first dry cleaning corn, remove the corn germ (can be used for making corn oil) and then use dry milling method to mill cleaned corn to required corn powder , without any water input or discharge during the corn powder production .
According to our dry milling technology, corn syrup manufacturing process can use two kind raw material (corn / broken rice) to produce the high quality glucose syrup directly. The customer can choose the more cheaper raw material at different time to produce corn syrup and get more profit from the corn syrup manufacturing process. More information about our corn syrup production equipment, please contact us freely from Whatsapp +8613526615783 or e-mail: sales@syrupmachine.com. We welcome you to visit our company.
Finally, you can click syrup machine to learn more related products from our company.
