HWIR1200Q-4 Automatic temperature control industrial hot air heater

Click image to view original image
Brand: HUAWEI
Price: 1140.00USD/pieces
Min.Order: 1 pieces
Supply 100 pieces
Delivery: Shipment within 3 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2018-09-20 16:44
Hits: 19021
Buy
Company Detail


Details

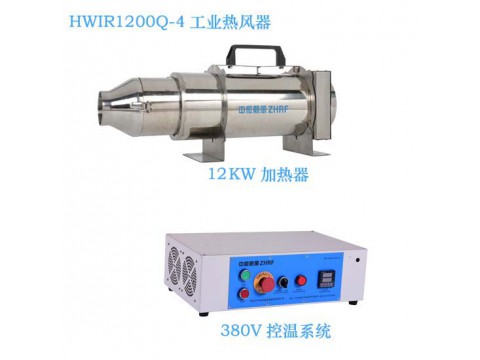

HWIR1200Q-4 Industrial Air Heater (Self-supply Air Source, Intelligent Digital Temperature Control, Digital Display Working Temperature, Separate Design)suitable for heating, drying and dehumidification in food, pharmaceutical, electronic, printing, spraying, cleaning and other industries.It is suitable for working alone or installed on the assembly line. It has high thermal efficiency and can work continuously for 24 hours. It is durable and has accurate temperature control.

Split design

The machine control system and heating system are separate, especially suitable for production line.

Air inlet interface

The machine adopts a tight air inlet interface, and the selection performance of the wind source is strong .

The choice of air volume is large.

The machine can choose air source or self distributing air source according to needs, which is convenient and practical.

Environmental protection

When the machine works, there is no exhaust gas, clean and environmental protection.

Heat insulation

Double layer heat preservation.The strong machine casing makes it safe and reliable,can maintain long-term high temperature work.Temperature can be adjusted digitally according to need. The power output is stable, and it can work continuously for 24 hours at high temperature.

High heat exchange efficiency

Ingenious design of wind tunnel let the air uniform through the inside and outside of the helical heating wire.Heat exchange near 100%.

Temperature regulation of hot air blower

The outlet is equipped with a temperature sensor, so that the machine can adjust the temperature according to needs. The temperature is controlled precisely at + 1 .

Term ordering detection function (preventing fan reversal)

This machine control system is equipped with motor item ordering sequence detection function.If the item ordering error,the item ordering warning indicator lights up.

Remote open control

This machine has a remote control interface, which can control the start and stop of the machine remotely.

Fan delay function

In order to protect the heating core and prolong the service life of the heating core, the machine has a time delay function of downtime and blow drying. After the machine stops working, the hair dryer will blow off for a minute before it can be shut down.

High heat exchange efficiency

Ingenious design of wind tunnel let the air uniform through the inside and outside of the helical heating wire.Heat exchange near 100%,the loss of wind pressure is less.The heating core of the hot air machine is designed to use the lower surface power density, and the heating temperature in the unit area is low, so the electric heat wire has a long service life.

Security

It has overheating overload protection, power cut protection device, emergency stop switch, phase sequence protection, fully guarantee the safety of the equipment, do not produce exhaust gas, and meet the environmental protection.This machine can operate continuously for 24 hours all around the year.

Optional air source

Centrifugal blower  medium pressure blower  high pressure blower



Classification

Item

Parameter

Size

Machine size

See picture

Vent

Diameter 133mm matching 76mm

air intake

Diameter 133mm

Insulation layer

Material

Double layer heat preservation

Heater

Name

Electric hot wire

Heater power

12KW

Power regulation

Digital intelligent temperature regulation

Maximum service temperature

350

Heating wire life

>100000 hours

Blower(Matching or user self matching)



Maximum power allocation

5.5KW

Minimum matching air volume

>65m³/H

Power Supply

Power demand

380V   Three phase four wire

Power

12.3KW

Weight

Weight

15KG
