Light Steel Frame Luxury Villa House

Steel frame house
Steel frame house is easy to assemble and disassemble for several times and cost saving and transport, the main structure is light gauge steel frame, with the insulation material, MGO or OSB plate, exterior with the decoration material, Beautiful, diverse, comfortable and environmentally, More and more popular around the world. Main used for light steel villa house, Light Gauge Steel Structure villa house, villa house and prefab house.

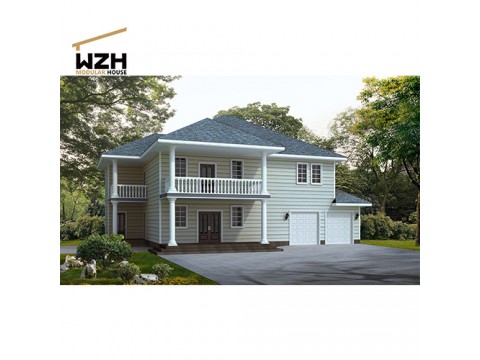

This villa out side use PVC clading plate decoration, clean and tidy. The design of the first floor provides a great flow and the gathering spaces are saturated with plenty of natural light. A butler's pantry leads from the kitchen dining room making formal dinners so much easier. An info center off the dining room provides a great place for supervising computer use. The second floor has 4 bedrooms, including a master suite that features a bath with dual vanities, shower with a seat, and a huge walk-in closet
Floor	Two floors
AREA	First floor: 155.72m2 Second floor: 190.52m2 Garage: 34m2 Total size: 380.24m2
CEILING	Light steel frame
ROOF	Roof Framing: Light steel frame
EXTERIOR WALL FRAMING	Exterior Wall Finish: PVC clading plate
	Framing: 89*41*11mm
BEDROOM FEATURES	Main Floor Master Bedroom Split Bedrooms Upstairs Bedrooms
KITCHEN AND TOILET	one kitchen Five toilet
GARAGE FEATURES	Detached Garage Front Entry Garage



Stee structure part
Material	Item	Specifications
Light Steel frame	LGSF	Grade: G550 Size: C89*41*11*0.8~1.0 Cold-formed C profile Galvanized Z275G/M2
	Accessories	Connector and Neils
Wall material	Bulu Board,Cement Board, Glass woll board, PE Waterproof Film, Gypsum Board, Breathing Paper, Putty powder
Roof material	Bulu board, SBS waterproof, Glass wool roll
Floor material	Bulu board, SBS waterproof, Glass wool Board
Celling material	Gypsum Board, Ceiling Keel, Aluminum Ceiling, Putty, painting



Decoration part
Wall decoration material	PVC Cladding / fiber cement cladding / pu metal cladding panel,wall tile /painted and so on
Floor decoration material	Composite floor. floor tile, plastic flooring and so on
Roof Finish	Asphalt Tile, color steel sheet, sandwich panel, clay tile,Vermiculite tile an so on
Door	Security Door,Wood door, Titanium alloys, Garage Door, sliding door and so on
Window	Aluminium alloy double glass, Broken bridge aluminum double glass



Accessories
Water	Water supply and drainage pipe
Electricity	Distribution	Distribution box, wire, switch, socket, pipe
Lighting	Ceiling Lamp
Sanitary	Toilet
	Wash Basin
	Shower
	Cabinet+Wash basin

Advantage
1) Lifetime for structure: 70 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire resistance.
5) Snow resistance: max 2.9KN/m²as required.
6) Heat insulation: 100 mm in thickness can match 1 m thickness of brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean.
10)Easy to assemble and disassemble for several times without damage, ten workers 15days can finished the house.
