Quick Information
-
Brand Name:Elite
-
Place of Origin:China
-
Density :8.28 g/cm3
-
Melting range :1393-1427℃
Description
Brief Description:
Inconel X-750 Chemical composition:
Alloy
%
Ni
Cr
Fe
Nb
Co
C
Mn
Si
S
Cu
Al
Ti
Inconel X-750
Min.
14
5.0
0.7
0.4
2.25
Max.
70
17
9.0
1.2
1.00
0.08
1.00
0.5
0.01
0.5
1.0
2.75
Inconel X-750 Physical properties:
Density
8.28 g/cm3
Melting range
1393-1427℃
Inconel X-750 Alloy m inimum Mechanical properties in the room temperature:
Alloy
Tensile strength Rm N/mm2
Yield strength RP0.2N/mm2
Elongation A5 %
Brinell hardness HB
Solution treatment
1267
868
25
≤400
Inconel X-750 Characteristic as below:: Inconel X-750 is a precipitation-hardenable alloy which has been used in applications such as high temperature structural members for gas turbines, jet engine parts, nuclear power plant applications, heat-treating fixtures, forming tools, and extrusion dies. The alloy is highly resistant to chemical corrosion and oxidation and has high stress-rupture strength and low creep rates under high stresses at temperatures up to 1500°F (816°C) after suitable heat treatment.
Inconel X-750 Machinability:
Conventional machining techniques used for iron based alloys may be used. This alloy does work-harden during machining and has higher strength and "gumminess" not typical of steels. Heavy duty machining equipment and tooling should be used to minimize chatter or work-hardening of the alloy ahead of the cutting.
Inconel X-750 Corrosion resistance: Inconel X-750 has excellent resistance to chloride ion stress-corrosion cracking. It exhibits satisfactory resistance to numerous oxidizing environments. The alloy has similar corrosion resistance to alloy 600 in many media.
Incoloy X-750 Application range and field:
-
Nuclear reactors
-
Gas turbines
-
Rocket engines
-
Pressure vessels
-
Aircraft structures
Specification of 17-4 ph 0 inconel 625 alloy nickel plate stainless steel price per kg
Product Name
17-4 ph 0 inconel 625 alloy nickel plate stainless steel price per kg
Steel type
AISI 630, AK Steel 17-4PH, UNS 17400,N06625,INConEL 625,2.4856
JIS SUS630
Din X5CrNiCU17-04
EN 1.4542
Standard
ASTM A564
Thickness
0.1~200mm
Width
Within 2000mm
Length
2000mm,2440mm,3000mm,5800mm,6000mm,etc
Finishing
Solution treated,as per clients' request
Feature of 630
High Tensile strength, high hardness after heat treated.
Mechanical property
T.S. (Rm): 1015Mpa, Y.S. (Rp0.2): 906Mpa, Hardness(HRC): 34.5
Application
construction field, ships building industry, petroleum,chemical industries,
war and electricity industries, food processing and medical industry,
boiler heat exchanger,machinery and hardware fields.Stainless steel plate can be made according to the customers requirements.
Delivery time
3-15 working days after contract signed
Certificate
ISO, SGS, mill test certificate
Package
Standard export seaworthy package,suit for all kinds of transport,or as required.
Price
-
Delivery Port :Tianjin
Packaging & Delivery
-
Packing :Standard seaworthy packing
-
Delivery Lead Time :7 days for ready goods
-
Supply Ability :2500 tons /week

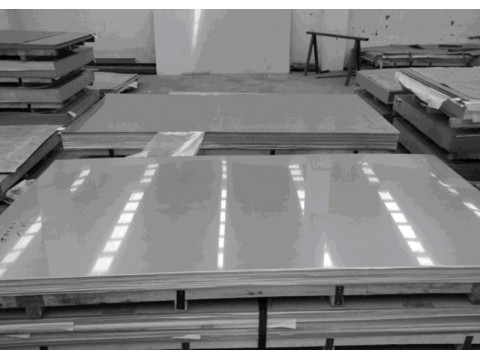

Product Image
-
Quick Information
- Brand Name:Elite
- Place of Origin:China
- Density :8.28 g/cm3
- Melting range :1393-1427℃
Description
Brief Description:
Inconel X-750 Chemical composition:
Alloy | % | Ni | Cr | Fe | Nb | Co | C | Mn | Si | S | Cu | Al | Ti |
Inconel X-750 | Min. | 14 | 5.0 | 0.7 | 0.4 | 2.25 | |||||||
Max. | 70 | 17 | 9.0 | 1.2 | 1.00 | 0.08 | 1.00 | 0.5 | 0.01 | 0.5 | 1.0 | 2.75 |
Density | 8.28 g/cm3 |
Melting range | 1393-1427℃ |
Alloy | Tensile strength Rm N/mm2 | Yield strength RP0.2N/mm2 | Elongation A5 % | Brinell hardness HB |
Solution treatment | 1267 | 868 | 25 | ≤400 |
Inconel X-750 Characteristic as below:: Inconel X-750 is a precipitation-hardenable alloy which has been used in applications such as high temperature structural members for gas turbines, jet engine parts, nuclear power plant applications, heat-treating fixtures, forming tools, and extrusion dies. The alloy is highly resistant to chemical corrosion and oxidation and has high stress-rupture strength and low creep rates under high stresses at temperatures up to 1500°F (816°C) after suitable heat treatment.
Inconel X-750 Machinability:
Conventional machining techniques used for iron based alloys may be used. This alloy does work-harden during machining and has higher strength and "gumminess" not typical of steels. Heavy duty machining equipment and tooling should be used to minimize chatter or work-hardening of the alloy ahead of the cutting.
Inconel X-750 Corrosion resistance: Inconel X-750 has excellent resistance to chloride ion stress-corrosion cracking. It exhibits satisfactory resistance to numerous oxidizing environments. The alloy has similar corrosion resistance to alloy 600 in many media.
Incoloy X-750 Application range and field:
- Nuclear reactors
- Gas turbines
- Rocket engines
- Pressure vessels
- Aircraft structures
Product Name | 17-4 ph 0 inconel 625 alloy nickel plate stainless steel price per kg |
Steel type | AISI 630, AK Steel 17-4PH, UNS 17400,N06625,INConEL 625,2.4856 |
JIS SUS630 | |
Din X5CrNiCU17-04 | |
EN 1.4542 | |
Standard | ASTM A564 |
Thickness | 0.1~200mm |
Width | Within 2000mm |
Length | 2000mm,2440mm,3000mm,5800mm,6000mm,etc |
Finishing | Solution treated,as per clients' request |
Feature of 630 | High Tensile strength, high hardness after heat treated. |
Mechanical property | T.S. (Rm): 1015Mpa, Y.S. (Rp0.2): 906Mpa, Hardness(HRC): 34.5 |
Application |
construction field, ships building industry, petroleum,chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchanger,machinery and hardware fields.Stainless steel plate can be made according to the customers requirements. |
Delivery time | 3-15 working days after contract signed |
Certificate | ISO, SGS, mill test certificate |
Package | Standard export seaworthy package,suit for all kinds of transport,or as required. |
Price
- Delivery Port :Tianjin
Packaging & Delivery
- Packing :Standard seaworthy packing
- Delivery Lead Time :7 days for ready goods
- Supply Ability :2500 tons /week
