Products Feature:
Basic INTEL Celeron C1037
Support 8 x LAN, Intel 82574L 1000M, Giga LAN
1pcs DDR3 SO DIMM memory, Max up to 8G
Support VGA and 2pcs USB3.0
12V 12.5A Open frame Powersupply
High performance:
The structure is designed to meet the network security standard, low power consumption, high performance, cost-effective
Series No. |
B204-1 |
|
Model |
HCL-SC1037-8LB |
|
Platform |
Intel |
|
Chassis |
Colour |
Dark grey |

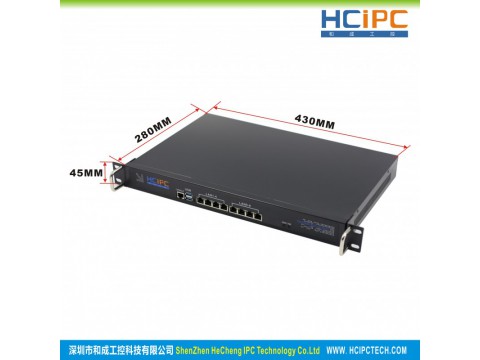

Size |
430*280*45MM ( L*W*H) |
|
Structure |
Heavy Steel Structure |
|
Material |
High Strength Fine Steel Casting Iron |
|
Package size |
520*380*120MM |
|
Net Weight |
3.5kg |
|
Gross Weight |
4kg |
|
Motherboard |
Model |
M502-2 LAN-HC1037-8L |
CPU |
Intel Ivy Bridge Celeron dual-core C1037U 1.8GHz |
|
Chipset |
Intel NM70 |
|
Memory |
1*SO-DIMM,DDR3 1333\1600MHz Memory,max up to 8GB |
|
Storage |
CF |
1 x CF |
Harddisk |
1 x 3.5 or 2x 2.5inch Harddisk |
|
System |
LAN |
8 x LAN, Intel 82574L 1000M |
USB |
2 x USB3.0 |
|
COM |
1 x R232 (Optional) |
|
Display |
1 x VGA |
|
Cooling System |
2x System Fan |
|
System Control |
Power On/Off button |
|
LED Indicator |
PWR_LED,HDD_LED |
|
PS/2 |
N/A |
|
PWR |
Power Mode |
Open frame 12V 12.5A (we use MeanWell Brand: LRS-150) |
Feature |
N/A |
|
Reliability |
Installation |
1U Rack mount |
Operation Temp |
-5~55°C |
|
Storage Temp |
-40~80°C |
|
Relative Humidity |
10%~80%, Relative humidity, no-condensing |
