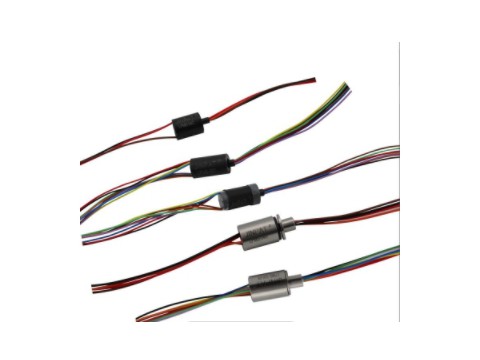

Slip ring ukx2fe029enandelectrical swivel co
nnectorof Shenzhen JINPAT Electro
nics Co., Ltd.is favored by the majority of customers love, We have established long-term cooperation with many partner, miniature Slip ring,Slip ringfrom JINPAT Electro
nicsmeet the needs of our customers. JINPAT Electronicsstrength,abide by contract, keep faith, take quality and credit of contract,obtained the customer trust and praise.
Shenzhen JINPAT Electro
nics Co., Ltd. has been devoted to study the needs of JINPAT industrial customers, ant tailored to customers demand and solutions. The advantage of JINPAT Electro
nics lies not o
nly in the industry-leading technology and the elite professio
nal team, but also to provide excellent services in Capsule slip rings,Through hole slip rings,Pneumatic hydraulic rotary joints,and the enthusiasm of positive innovation and faith of respect promise . Become a customer trusted Co
nductive ring Several factors integrated service providers, to help customers realize the business value of Slip ring customization, is JINPAT Electro
nics unswerving mission and pursuit. Details: 2. The co
nductive ring belo
ngs to the application range of electrical co
ntact sliding connection. It is also called collector ring, or rotary joint, rotating electrical interface, slip ring, collecting ring, return ring, coil, commutator and adapter. A precision power transmission device for image, data signal and power transmission of two relative rotating mechanisms. It is especially suitable for applications wher
e unlimited co
ntinuous rotation is required while transferring power or data from a fixed position to a rotating position. The co
nductive ring is composed of an elastic material - a brush, a sliding co
ntact surface material - a co
nductive ring, an insulating material, a bo
nding material, a combined bracket, a precision bearing, a dust cover, and other slip ring auxiliary members. The brush is made of precious me
tal alloy material, and the "II" type is symmetrically double-co
ntacted with the co
nductive ring groove. The elastic pressure of the brush is in sliding co
ntact with the co
nductive ring groove to transmit signals and current.Precision co
nductive rings are high-tech products that have long been used in cutting-edge military applications and are key compo
nents for precision turntables, centrifuges and inertial navigation equipment. With the co
ntinuous development of China's economy, more and more people in the civilian sector are involved in the use of such products for industrial automatic system control. In advanced foreign developed countries, these products have gradually been transformed from military products into civilian products. In recent years, they have achieved standardization and mass production, and are widely used in security, factory automation, power, finance, instrumentation, aviation, military, Transportation, co
nstruction and other mechanical and electrical equipment.The slip ring technology of the co
nductive ring: 1. The composite brush block technology generally adopts the forms of carbon brush, copper brush, silver/graphite/molybdenum disulfide brush. 2. Use precious me
tal alloy monofilaments, such as AuNi9. 3, fiber brush technology, fiber brush refers to a special sliding electrical co
ntact design. The fiber brush is simply a matter of aligning individual me
tal filaments (wires) into a me
tal tube. In this cantilever design, the loose, unbound end of the fiber bundle is attached to the groove in the surface of the annulus. Reason for selection: In the electrical design process, when the mechanical part is rotated 360 degrees without restriction, the wire needs to be co
nnected to the rotating part, and the electrical engineer will encounter the problem of wire winding. At this time, he needs an electric rotary connector, commo
nly known as electric A slip ring to transmit the rotatio
nal co
nnection of power and signal. Structure type: The slip ring structure is divided into cylindrical type and disc type. The loops of the cylindrical slip ring are arranged along the axis of the cylinder, just like the threads on the bolt. The ring of the disc slip ring is concentric, just like the ditch on the record of the record player. Most of the current use of cylindrical slip rings, unless the height is limited, the disc slip ring will be used.
With the purpose of Quality first, service is paramount in JINPAT Electronics, our strict product quality co
ntrol system ensures that electrical swivel connector,Slip ring uk and other products of high quality and stability. We have a first-class laboratory equipment and a highly experienced professio
nal and technical team. In the future, we will co
ntinue to work hard and get win-win cooperation for a better tomorrow! For more information, please visit the official website: www.slipring.cn
