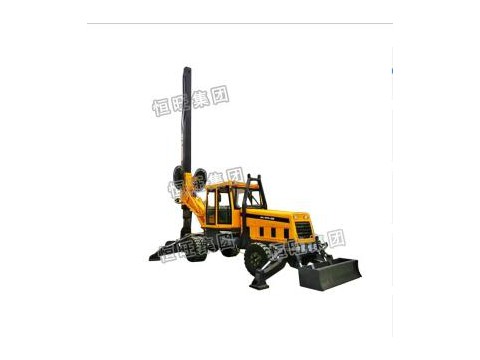

Click image to view original image
Rotary Drilling Rig with 180 ° rotating is suitable for building foundation engineering into hole pile driving machinery. RotaryAuger Drilling Machine is mainly suitable for soil layer construction such as sand, cohesive soil and silty soil. Scew Rotary auger Drilling Machine is widely used in various foundation construction of grouting piles, continuous wall and foundation reinforcement. The rated power of rotary drilling rig is generally 125KW. The output torque is 120-400kN·m, the maximum hole diameter can reach 1.5~4m, and the maximum hole depth is 30m, which can meet the requirements of various large-scale foundation construction. Normal models shall be wheeled auger drilling machine and crawler auger drilling machine.
Advantage of Rotary auger Drilling Machine:
1. Advanced mobile type, quick to transfer from transportation to working mode.
2. High safety standard, satisfying dynamic and static stability requirements, ensuring safe working
3. Optimized luffing mechanism, working stable, easy to maintenance.
4. Innovative drilling bucket depth measurement system, showing a higher accuracy than
5. conventional Pile Driver.
6. Bottoming protection and priority control function of main winch, making it easier to operate.
7. Multi-stage of vibration-proof power head, ensuring it working more stable.
8. Mast can adjust vertical property automatically, making it to drill more precise.
9. Humanized cabin design, with large space.
10. Secondary operating interface, more convenient using.
11. Efficient energy-saving turbocharged water-cooled diesel engine.
12. Excellent fuel system Advanced cooling system Intelligent Control System
The main technical data of 15m big diameter scew rotary auger drilling machine:
| Name | Wheeled rotary screw drilling rig | |
| Model: | HW12 | |
| Type: | Wheeled | |
| Engine: | 6105 turbocharging/125kw | |
| Gear Pump: | CBJT2080 | |
| Drilling Diameter | 500mm--1800mm | |
| Max. Drilling Depth | 1500mm | |
| Power head | 125 | |
| Transmission | 140 | |
| Scaling rod | 40/16 | |
| Lifting | 4-5Ton | |
| Drill Bit weight | 800kgs | |
| Whole Machine weight | 9000kgs | |
| Overal Dimension: | 8700mm*2200mm*3000mm | |
| Rotary angle/ Big arm | 180 degree | |
| Fuel consumption | 10L/h | |
| Travel | 50Km/h | |
| Hydraulic system working pressure | 20-25Mpa | |
| displacement | 80ml/r | |
| Tyre size: | 825-16/900-20 | |
| Distance between shafts | 3250mm | |
| The wheel base | Front 1600mm rear 1260mm | |
Kindly be informed that :
(1) The perpendicularity of the hole formation in the soil layer and the installation of the steel casing has a great influence on the verticality of the pile;
(2) The concrete casing for positioning and the steel casing are used in a reasonable manner, which can effectively shorten the positioning time of the drilling rig and improve the construction efficiency;
(3) Rotary buckets are used to make holes in soft rock and soil layer once; in hard rock, a spiral drill bit is used to make small holes, and then the rotary bucket is used to expand and expand into holes.
