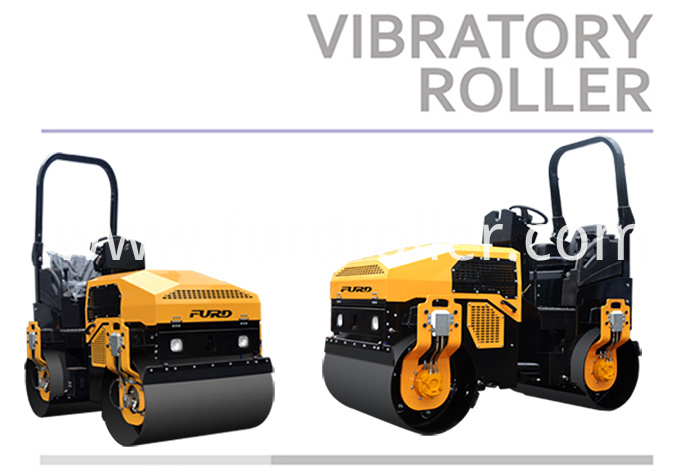

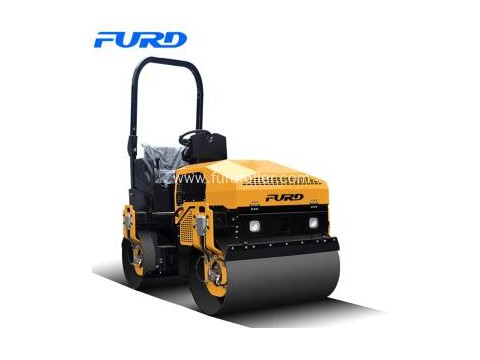

Vibratory Road Roller is suitable for compaction of asphalt, compaction of non-cohesive and cohesive soil and compaction of stabilized soils. It is used primarily for small-scale compaction work, such as pavements, cycle paths, small roads and small parking areas, and places that need compaction but are difficult to reach with a large roller. FYL-1200 is 3 ton articulated vibratory road roller, use full hydraulic transmission, this model is high configuration hydraulic vibratory road roller.
Technical Parameter:
| Model | FYL-900 | ||
| Engine Model | Honda gasoline Gx630 | Vibration Frequency | 65HZ |
| Power | 20HP | Exciting Force | 30KN |
| Walk Speed | 0-8km/h | Water Tank | 100L |
| Gradeability | 30% | Hydraulic Oil Tank | 60L |
| Drive Type | Hydraulic transmission | Steel Wheel Size | Φ560mm X900mmX2 |
| Vibration Model | Hydraulic Vibration | Net Weight | 1500kg |
| Static Liner Load | 55/70N/cm | Starting Mode | Electric |
| Nominal Amplitude | 0.6mm | Package Size | 2500x1200X1750mm |
Features:
1. 3 ton vibratory road roller adopts Perkins water cooling diesel engine, which has good performance;
2. Use full hydraulic transmission, infinitely variable speed;
3. Use famous hydraulic motors, double drums hydraulic driving, hydraulic turning;
4. Double drums hydraulic vibrating and front drum vibrating can be switched, the vibration capacity is 60KN.
