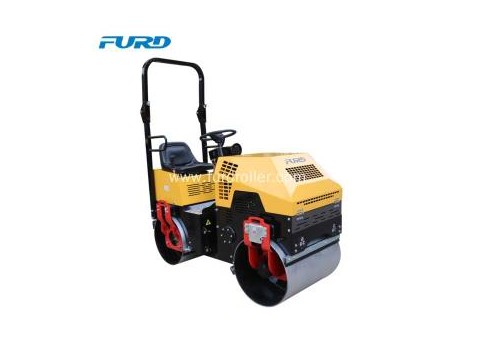

Vibratory Mini Road Roller, adopts full hydraulic transmission, infinitely variable speed, double drum hydraulic drive, hydraulic steering, mechanical vibration, the vibration capacity is 2.5ton.the exciting force is 25KN,gasoline /diesel generator optional.Gasoline Honda Gx390 engine power is 13HP. Air-cooled diesel engine power is 9HP.Water-cooled diesel engine power is 9HP.
It is mainly used for compaction and leveling of ditch foundation, road and sports field. It can also used for compaction of asphalt surafce.
Technical Parameter
FYL-880 Vibratory Roller
|
|||
Walk Speed
|
0-5km/h
|
Water Tank
|
60L
|
Gradeability
|
30%
|
Hydraulic Oil Tank
|
20L
|
Drive Type
|
Variable Piston Pump(Full Hydraulic Transmission)
|
Engine Model
|
Diesel/HONDA/Honda GX390
|
Vibration Control
|
Electromagnetic Clutch
|
Power
|
13.0HP
|
Static Linear Load
|
55N/cm
|
Steel Wheel Size
|
φ350*635mm*2
|
Nominal Amplitude
|
0.6mm
|
Package Size
|
2100x1000X1650mm
|
Vibration Frequency
|
70HZ
|
Net Weight
|
1000kg
|
Exciting Force
|
25KN
|
Starting Mode
|
Hand/Electric
|
Features
1) Compact design and good performance, operate radius small, can work in small area, suitable for groove backfill.
2) Use Danfoss hydraulic variable plunger pump, drives the machine stepless speed waling.
3) Hydraulic double drum drive and hydraulic steering, use White hydraulic motors.
4) NSK bearing, MITSUBOSHI triangle belt, ensure the machine`s work performance.
5) Use electrical startup, machine vibration control use electromagnetic clutch, easier operation.
6) Foldable handle with easy control and vibration-reduction design.
7) Large rubber shock mounts absorb vibration and shock to the upper components, reducing equipment wear and operator fatigue.asphalt road roller compactor

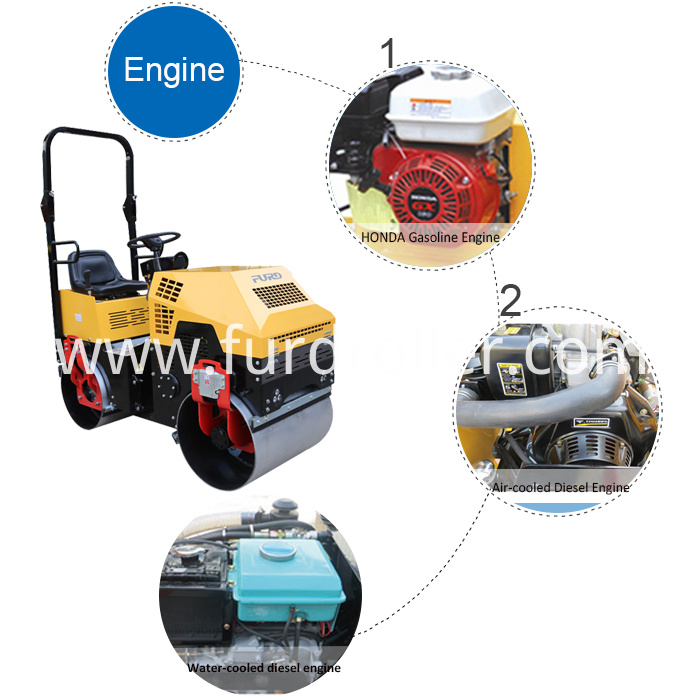

8) Engine option of Honda GX390 gasoline engine , water cooled diesel engine or Kipor air cooled diesel engine.
