Factory Afford Vibratory Asphalt Compactor Roller

Click image to view original image
Brand: FYL-860
Price: Negotiable
Min.Order: 1
Supply
Delivery: Shipment within 7 days since the date of payment
Address: China
Valid until: 2021-01-24 [Expired]
Updated on: 2018-12-04 10:50
Hits: 37831
Company Detail


Details

Asphalt Compactor Roller is one kind of small-size Road Roller, adopts famous Changfa diesel engine, the power of diesel engine is 6HP, can adopts Honda gasoline engine too, it adopts Danfoss BDU, adopts hydraulic drive, single drum driving and vibrating, the exciting force is 27KN,our New Soil Compactor has electric start, luxurious seat and LED lamp, the Vibrating Road Roller Machine is mainly used for compact asphalt, broken stone, backfill and concrete etc. The package of our FYL-860 Road Roller is wooden case or according to customers' requirements.


Technical Parameters:

Model

FYL-860

Walk Speed

0-5km/h

Gradeability

30%

Drive Type

Full hydraulic drive

Vibration Control

Electromagnetic Clutch

Static linear load

55N/cm

Nominal amplitude

0.6mm

Vibration frequency

70Hz

Exciting force

27KN

Water tank

20L

hydraulic oil tank

19L

Engine Model

CF178F

Power

6.0HP

Steel Wheel Size

φ540*740mm
φ425*675mm

Size

1720x860X1400mm

Net Weight

800kg

Starting Mode

Hand/Electric


Product Feature:

1). Operate radius small, can work in small area, suitable for groove backfill.

2). Use famous diesel engine, famous brand quality assurance, superior performance, easy to start.

3). Adopt international famous brand hydraulic drive, and infinitely variable speed, walk forward and backward, reversing convenient.

4). Use electrical startup, machine vibration control use electromagnetic clutch, easier operation.

5). Install luxurious seats, convenient adjustment, and work comfortable.

6). Adopt international NSK bearing, MITSUBOSHI triangle belt, ensure the machine`s work performance.

7). Surface spray, beautiful appearance, rust resistant.

Details


Product Photos:

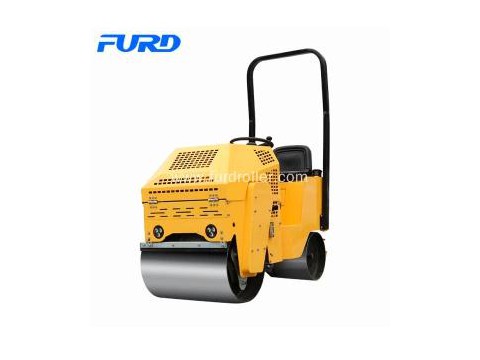

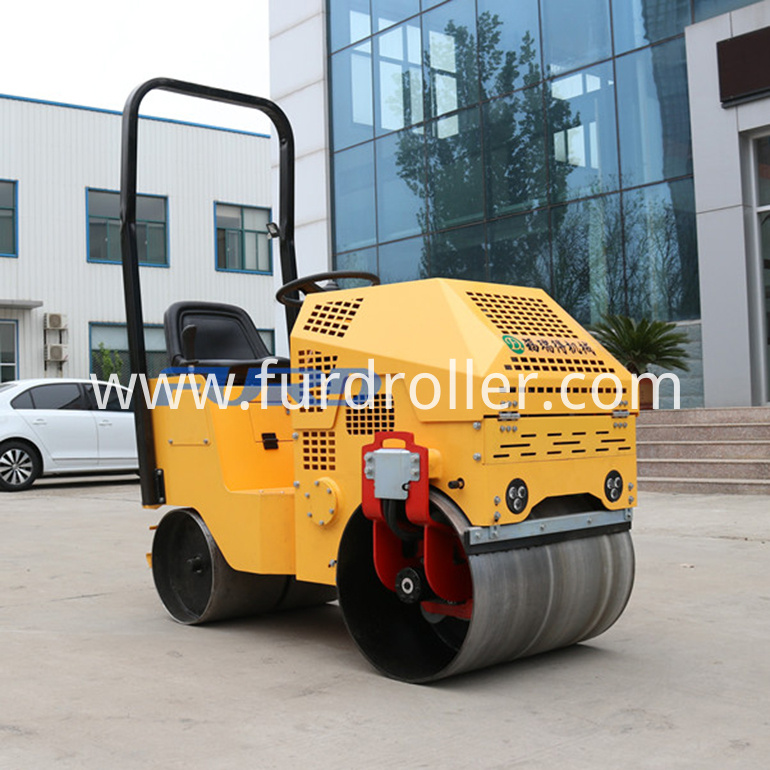

FYL-860 Roller
