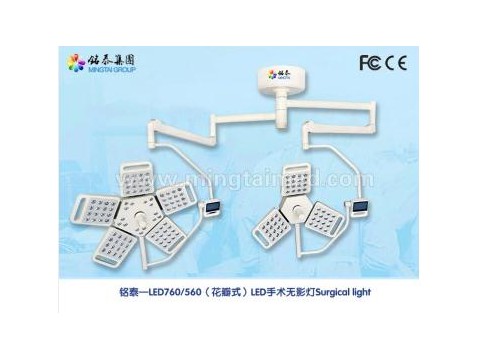

Mingtai LED760/560 petal model shadowless light

Mingtai LED760/560 petal model shadowless light CRI is more than 90, can reflect the object`s color truly, 4300 color temperature can engender white light which is closed to natural light, it is suitable for visual inspection. Light`s symmetry can have a prefect control to shadow, no matter where the operation position is. It owns t o the overlapping light technology. 24% turbulence level is less than DIN1946`s rule

Product feature:

1. Shadowless lighting

Shadow will be diluted by light

Light`s symmetry can have a prefect control to shadow, no matter where the operation position is. It owns t o the overlapping light technology

Five stars laminar flow effect

Cold flow design

Smoothly surface

24% turbulence level is less than DIN1946`s rule

No rising air

2. Long lifetime

40 times long lifetime halogen bulb, reaching 60,000 H, don`t need change bulb frequently.

3. Perfect cold light effect

LED do not engender infrared ray, temperature rising in doctor head is less than 2℃, and low temperature rising in the surgical field can prevent body fluid`s losing during operation, solving the question caused by general shadowless light of impacting wound healing because of the high temperature rising

4. Lowest irradiance

The light is visible light, no infrared and ultraviolet, less heat

Less temperature rising in the surgical field, average irradiance is 3.8mw/m2, advanced level in the world

The world shadowless operation light`s energy consumption can reduce more than 30%

5. Suitable color temperature and high CRI

4300 color temperature can engender white light which is closed to natural light, it is suitable for visual inspection

The CRI is more than 90, can reflect the object`s color truly

6. Health and easy to clean

Smooth and streamline surface, no cut edge

Rounded curve and smooth surface is easy to clean

Shock resistance outer cover

Handle can be steam sterilization

Spectrum and color temperature

7. Sustainable development with high performance and efficiency

Lowest harmful substance

Mingtai LED 90% is made by aluminum, this material can be used for many times, don`t need too much material

Succinct package can reduce the material`s quantity and the rubbish, and also can reduce the carbon emission during the transportation

LED light has 40 times long life than halogen bulb, don`t need change it within 15 years, save resource

Curve and smooth surface can prevent the dust, and reduce the cleanser`s using and loss

Technical parameters:

Technical parameters MINGTAI LED760 MINGTAI LED560

Illuminance (lux) 180,000 130,000

Color Temperature (Kelvin) 4,300 4,300

Adjustable Color Temperature (Kelvin) (Optional) 3600-5600 3600-5600

Color Rendering Index (CRI) 96 96

Red Color Index (R9) 96 96

Light brightness control standard standard

Brightness control range 10-100% 10-100%

Temp rise (Surgeon head) (℃) 0.5 0.5

Temp rise (surgical field) (℃) 2 2

Effective Focusing Depth (cm) 60-150 60-150

Total Irradiance Ee (W/m2) 530 470

Radiant Power Ee/ Ec (mW/m2lux) 3.3 3.3

Lighting Spot Size (mm) 100-260 100-260

Bulb Type LED LED

Average Bulb Life (hours) 60,000 60,000

Bulb Quantity (main bulb+ auxiliary bulb) 128LEDS+384LEDS 128LEDS+385EDS

Depth of illumination L1+L2 (cm) 130 130

Power Consumption (W) 70 50

Height adjustment (cm) 118 118

Power Input 100-240VAC, 50/60Hz 100-240VAC, 50/60Hz
