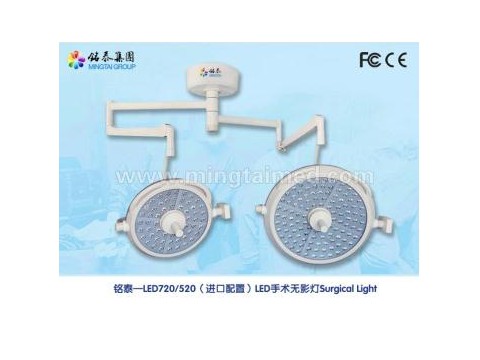

Mingtai LED720/520 imported configuration model Surgical Lamp shell is ABS material, integrated design with four handles around and streamlined ultra-thin design, the thickness is not more than 18CM, obtain excellent effect of laminar flow. The main operation light use 112LEDS(main bulb)+336LEDS(spare bulb) independent LED illuminant (lamp cup is one main and three spare bulb structure), divided into multiple independent illuminant group, subsidiary surgery light use 56LEDS(main bulb)+3168LEDS(spare bulb) LED illuminant (lamp cup is one main and three spare bulb structure), divided into multiple independent illuminant group; every lamp use double CPU control, every group of LED illuminant controlled by special circuit chip, any group failure will not affect the normal use of shadowless light.
Technical parameters:
Technical parameters MINGTAI LED720 MINGTAI LED520
Illuminance (lux) 160,000 120,000
Color Temperature (Kelvin) 4,300 4,300
Adjustable Color Temperature (Kelvin) (Optional) 3600-5600 3600-5600
Color Rendering Index (CRI) 95±3 95±3
Red Color Index (R9) 96 96
Light brightness control standard standard
Brightness control range 10-100% 10-100%
Temp rise (Surgeon head) (℃) 0.5 0.5
Temp rise (surgical field) (℃) 1 1
Effective Focusing Depth (cm) 60-150 60-150
Total Irradiance Ee (W/m2) 450 450
Radiant Power Ee/ Ec (mW/m2lux) 3.3 3.3
Lighting Spot Size (mm) 100-260 100-260
Bulb Type LED LED
Average Bulb Life (hours) 60,000 60,000
Bulb Quantity (main bulb+ auxiliary bulb) 112LEDS+336LEDS 56LEDS+168LEDS
Depth of illumination L1+L2 (cm) 130 130
Power Consumption (W) 70 50
Height adjustment (cm) 118 118
Power Input 100-240VAC, 50/60Hz 100-240VAC, 50/60Hz
Special advantage:
1. High strength ABS material, ultra-thin light head, integrated surrounded 4 group handle design, meeting laminar flow requirements, easy to operate
2. Variety of Surgical environment lighting mode: bright, normal, endoscopic lighting mode; base axis has ambient light lighting mode (optional)
3. Satlite oval hanging main arm, meet laminar flow requirement
4. Double control system (optional), Li battery (optional), electric focus adjustment system (optional), RGBW color adjustment system (optional), independent R9 function (optional), manual focus adjustment function (standard)
5. base configuration: Germany imported Balance Arm system, light head is designed by Germany engineer, USA LED bulb, Taiwan power system
Product feature:
1. Lamp shell is ABS material, integrated design with four handles around and streamlined ultra-thin design, the thickness is not more than 18CM, obtain excellent effect of laminar flow
2. Use international advanced warm white LED as shadowless illuminant, environmental, lower energy consumption LED bulb, bulb life: ≥60000 hours
3. LED do not engender infrared ray and ultraviolet radiation, it doesn`t have the temperature rise and tissue damage caused by halogen shadowless light, can accelerate the wound healing after surgery, and has no Radiation pollution
4. LED color temperature is constant, soft and not dazzling, close to natural light
5. The main light use 112LEDS(main bulb)+336LEDS(spare bulb) independent LED illuminant (lamp cup is one main and three spare bulb structure), divided into multiple independent illuminant group, subsidiary light use 56LEDS(main bulb)+3168LEDS(spare bulb) LED illuminant (lamp cup is one main and three spare bulb structure), divided into multiple independent illuminant group; every lamp use double CPU control, every group of LED illuminant controlled by special circuit chip, any group failure will not affect the normal use of shadowless light.
6. Double switch control system, when control panel failure, emergency switch which installed on light head can be used, guarantee light normal work. Control panel in the spring arm joint, film touch switch, easy to use, Not easy to damage
7. Microcomputer digital control, illumination can be adjustable; stepless adjustment, eight segments continuous indicating, adjustment range: 10%-100%, backlight illumination: ≥30 Lux; it offers illuminance memory function
8. Adopt restrain interference design of electromagnetic wave, avoid disturb with the other equipment in operating room
9. Use satlite oval swing pipe design, can install 4 cantilever devices in complex operating room, also can be reserved per hospital`s request, convenient to upgrade and provide perfect solution for the increasing multi-media request of hospital
10. Balanced system using imported German ondal arm module, more than 5 group universal joints, every cantilever must has more than 3 joints which can be rotated in 360°, equipped with fatigue correcting unit and fix position hand handle device, easy to fix position after using for long time
11. The handle on the central of lamp can be detachable, can take high temperature (≤ 134°C) sterilization treatment, easily adjust, flexible fixed; Adopt balanced arm, handy operate, and make sure the lamp stable during operation; has C-arm joint control panel, has luminance prompt facility, provide environment lighting models
12. Lamp panel radius of gyration: ≥182cm, the lamp can be pulled to vertical floor, convenient to any angle illumination. Unify ABS operate handle and mid-operation handle of Lamp rim convenient to operate. Product execute international IEC standard.
